John Deere X140

The John Deere X140 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 17.8 hp / 13.3 kW. Transmission: Tuff Torq HD K46. Operating weight: 524 lbs 237 kg.

Overview

	2007 - 2010 X100 SeriesLawn tractor
2007 - 2010
X100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA

John Deere X140 Engine
13.3KW Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	3.9 gal 14.8 L
Engine details ...

John Deere X140 Transmission
hydrostatic
Transmission details ...

Mechanical
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Weight	524 lbs 237 kg
Front tire	16x6.5-8
Rear tire	22x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	regulated circuit
Charging amps	9
Battery volts	12
Battery Group	BCI U1

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 40
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	655 cc 40 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power (gross)	17.8 hp 13.3 kW
Air cleaner	paper and foam
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.010 inches 0.254 mm
Intake valve clearance	0.005 inches 0.127 mm
Exhaust valve clearance	0.005 inches 0.127 mm
Oil capacity	2.0 qts 1.9 L

Transmission

Transmission — Tuff Torq HD K46

Transmission	Tuff Torq HD K46
Type	hydrostatic

Dimensions

John Deere X140 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	22x9.5-12

Dimensions
Length	69.25 inches 175 cm
Width	60 inches 152 cm
Height	45 inches 114 cm
Weight	524 lbs 237 kg

Attachments

48" Mower deck
Type	mid-mount John Deere 48C
	3-blade with manual lift
Cutting width	48 inches 121 cm
Overall width	60 inches 152 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

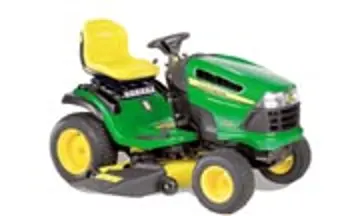

John Deere X140 tractor photo
