John Deere 320
The John Deere 320 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 585 cc 35.7 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Sundstrand BDU-21. Operating weight: 625 lbs 283 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Sundstrand BDU-21
Operating Weight
625 lbs
283 kg
John Deere Lawn Tractors John Deere 320 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1994
Garden tractor |
|---|---|
1991 - 1994 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $6,850 in 1994 | |
Although it carried a 300-series model number, the John Deere 320 had more in common with the late 200 series models such as the 285, 265, and 245. Options such as the integral hitch, bumper, and cab enclosure were shared with those models. | |
John Deere 320 Engine | |
|---|---|
18HP Kawasaki 585cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
John Deere 320 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Drum brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.9 inches
121 cm |
Weight | 625 lbs
283 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 17 |
Battery volts | 12 |
References | |
|---|---|
 | |
320 Lawn and Garden Tractor published in 1992, by John Deere | |
Lawn and Garden Tractors published in 1994, by John Deere |
Engine
Engine Detail — 585 cc / 35.7 ci Gasoline
Manufacturer | Kawasaki FD590V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, liquid-cooled vertical-shaft V-Twin |
Displacement | 585 cc
35.7 ci |
Bore/Stroke | 2.91x2.68 inches
74 x 68 mm |
Power (gross) | 18 hp
13.4 kW |
Air cleaner | foam precleaner with paper filter |
Rated RPM | 3400 |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Coolant capacity | 3.3 qts
3.1 L |
John Deere 320 Engine | |
|---|---|
 |
Transmission
Transmission — Sundstrand BDU-21
Transmission | Sundstrand BDU-21 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.6 qts
2.5 L |
 | |
Dimensions
John Deere 320 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 47.9 inches
121 cm |
Length | 71.5 inches
181 cm |
Width | 39 inches
99 cm |
Height | 43.6 inches
110 cm |
Weight | 625 lbs
283 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade | |
The John Deere 320 was compatible with a 30-inch rear tiller (models 3260M, 3161M, 3263M, and 3264M). |
48" Mower deck | |
|---|---|
Type | mid-mount John Deere |
3-blade with hydraulic lift | |
Cutting width | 48 inches
121 cm |
Photos
John Deere 320 garden tractor, left side.

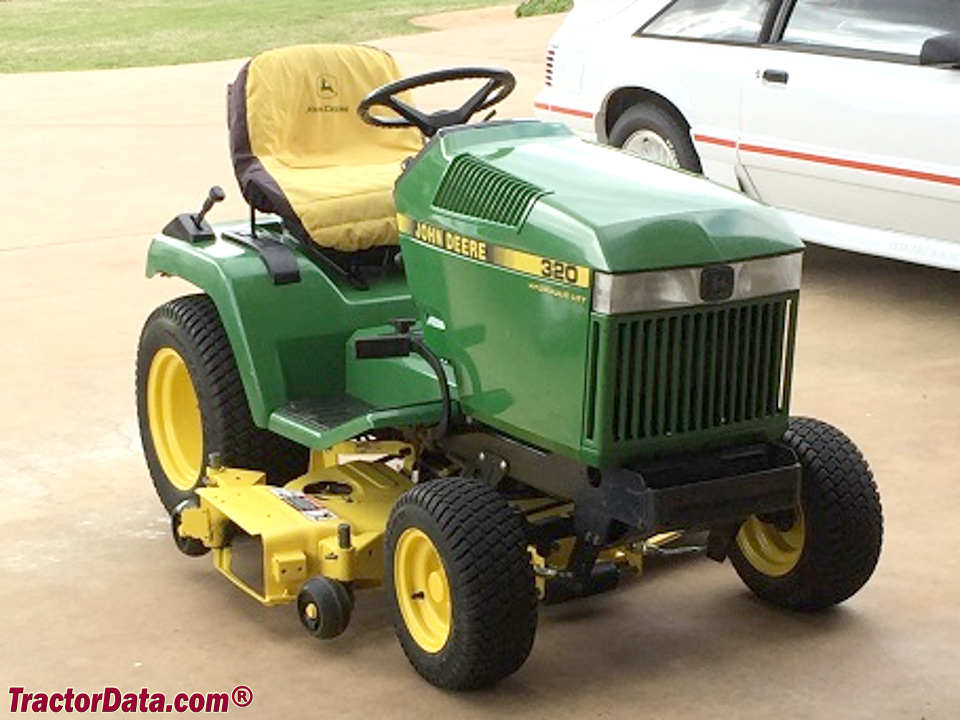

John Deere 320 garden tractor.

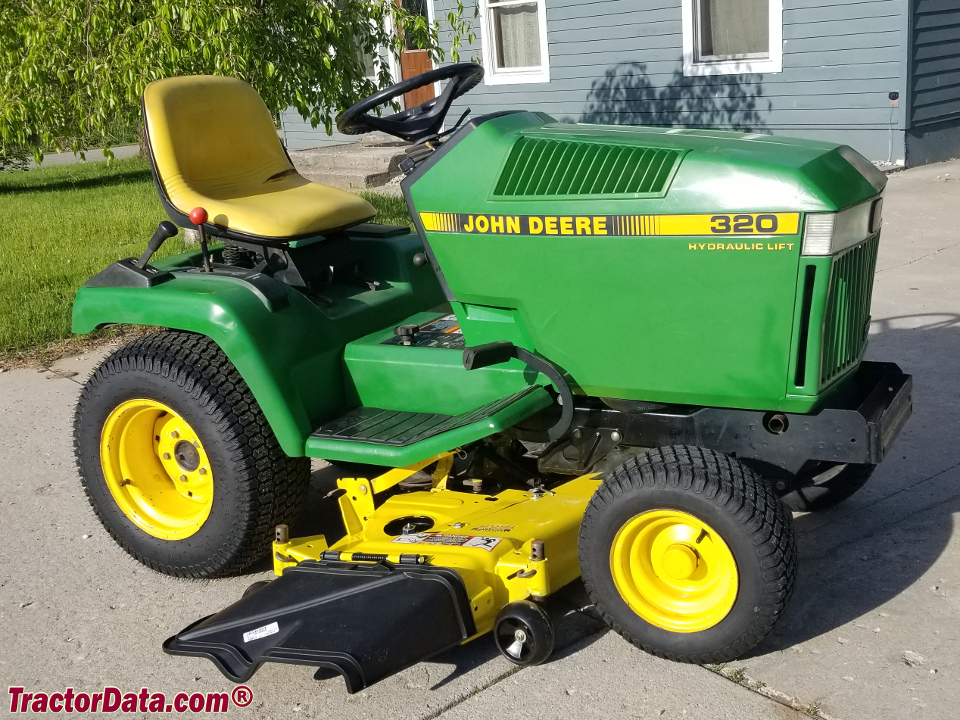

John Deere 320 garden tractor.

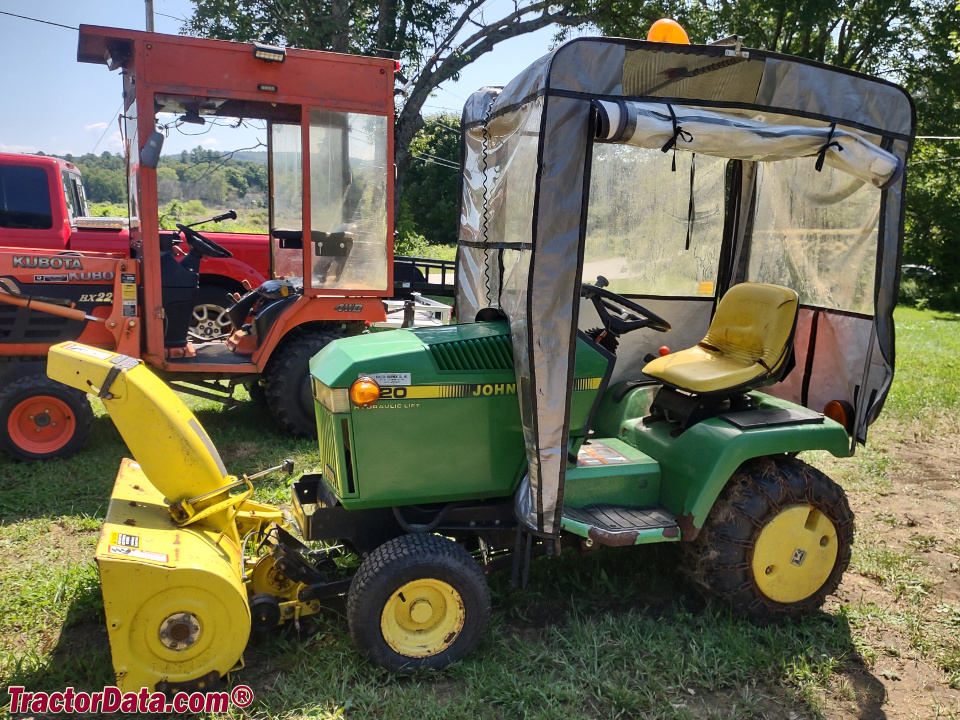

John Deere 320 with 49 snowblower and Bercomac softcab.
