John Deere 145
The John Deere 145 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 22 hp / 16.4 kW. Transmission: Tuff Torq HD K46. Operating weight: 524 lbs 237 kg.
Overview
 | 2006
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $2,299 in 2006 | |
John Deere 145 Engine | |
|---|---|
22HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
John Deere 145 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.8 inches
123 cm |
Weight | 524 lbs
237 kg |
Front tire | 16x6.5-8 |
Rear tire | 22x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | regulated circuit |
Charging amps | 16 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Operator's Manual 100 Series (OMGX21821) published in 2006 |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 2.97x2.89 inches
75 x 73 mm |
Power | 22 hp
16.4 kW |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.010 inches
0.254 mm |
Intake valve clearance | 0.005 inches
0.127 mm |
Exhaust valve clearance | 0.005 inches
0.127 mm |
Oil capacity | 1.9 qts
1.8 L |
Transmission
Transmission — Tuff Torq HD K46
Transmission | Tuff Torq HD K46 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
John Deere 145 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 22x9.5-12 |
Dimensions | |
|---|---|
Wheelbase | 48.8 inches
123 cm |
Length | 69 inches
175 cm |
Width | 50.5 inches
128 cm |
Height | 46 inches
116 cm |
Weight | 524 lbs
237 kg |
Attachments
48" Mower deck | |
|---|---|
Type | mid-mount John Deere |
manual lift | |
Cutting width | 48 inches
121 cm |
Photos

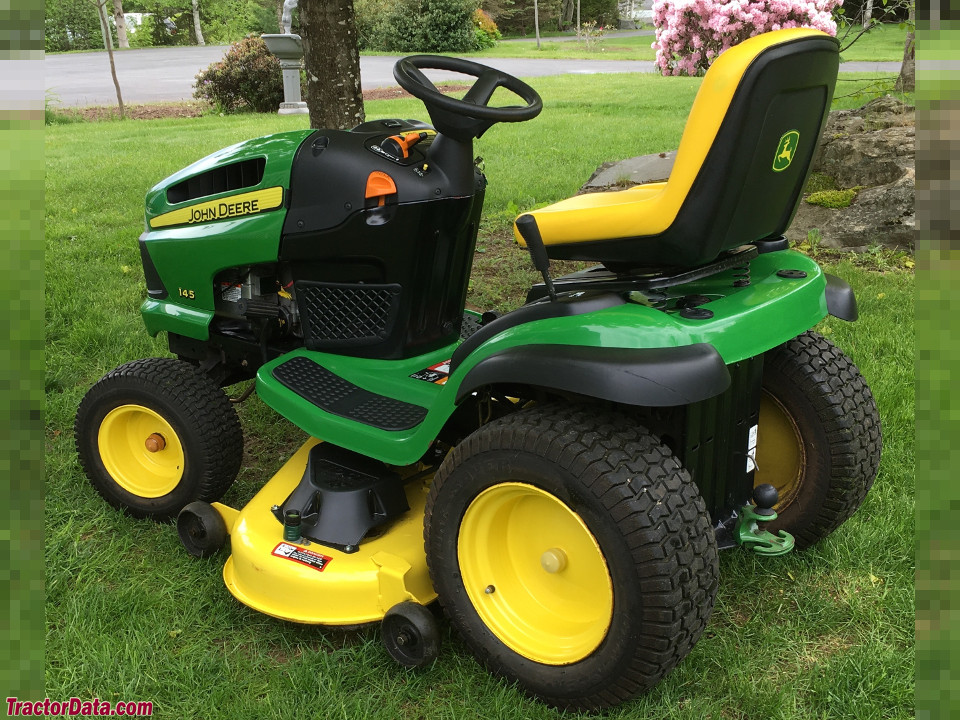

John Deere 145 lawn tractor. Photo contributed in memory of the original owner, Art Brown.

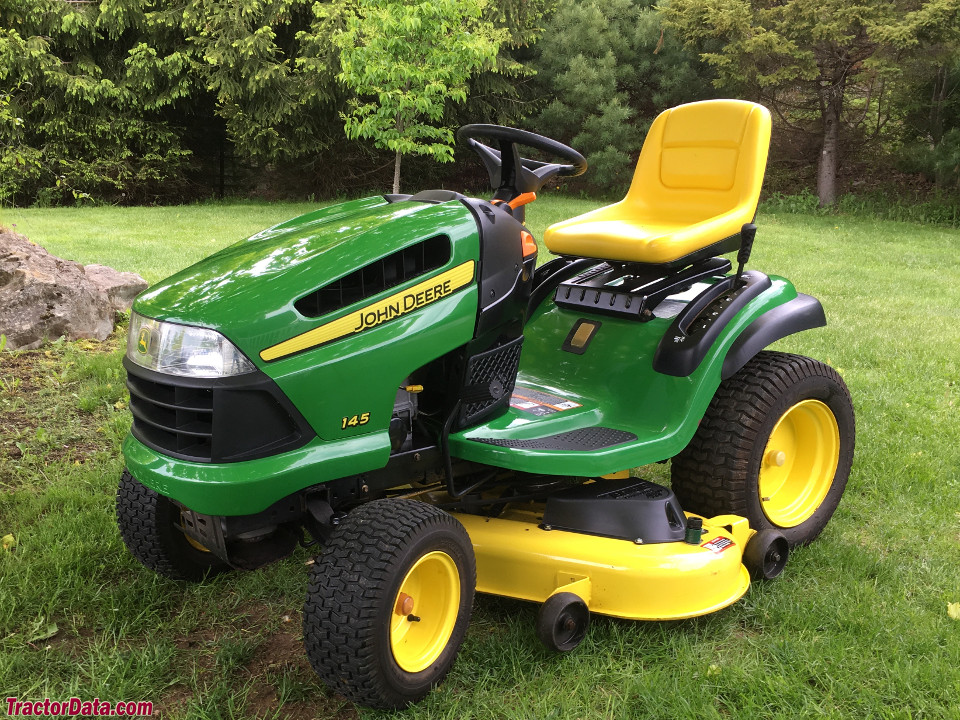

John Deere 145 lawn tractor. Photo contributed in memory of the original owner, Art Brown.
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere 145 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 145.
Estimated Continuous Field Runtime: 1.8 hrs
Approximately 1.8 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
John Deere Lawn Tractors John Deere 145 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere 145.
Converted Equivalents:
