John Deere 455

1992 - 2001

400 Series

Garden tractor

Manufacturer

John Deere

Garden tractor

Built in Horicon, Wisconsin, USA

Original price was $10,995 in 1995

22HP Yanmar 881cc 3-cyl diesel

Fuel tank

6.5 gal 24.6 L

hydrostatic

Two-wheel drive

Differential lock

mechanical rear

Steering

hydrostatic power

four-wheel steering OptOptional

Wet disc brakes

Open operator station. Cozy cab available with optional heater.

Type

Gerotor

Pressure

1000 psi 69.0 bar

Mid valves

2

Pump flow

4.65 gpm 17.6 lpm

Rear Type

0 OptOptional

Rear lift

650 lbs 294 kg

Rear PTO

independent *Rear PTO optional. Tractor must be off for shifting between rear, mid, or both PTOs.

Clutch

electro-hydraulic

Rear PTO Type

540 (1.375)

Mid PTO

independent

Clutch

electro-hydraulic

Mid PTO Type

2000

2WS Wheelbase

50.4 inches 128 cm

AWS Wheelbase

49.4 inches 125 cm

Weight

965 to 1060 pounds

Front tire

18x8.50-8

Rear tire

26x12.00-12

Ground

negative

Charging system

alternator

Charging amps

20

Battery CCA

470

Battery volts

12

Battery Group

45

400 Series Lawn and Garden Tractors published in 1993, by John Deere

400 Series Lawn and Garden Tractors published in 1994, by John Deere

400 Series Product Information Handbook published in 1992, by John Deere

Beauty or the Beast? published in 2000, by John Deere

Lawn and Garden Product Information Handbook published in 1996, by John Deere

Lawn and Garden Product Information Handbook published in 1997, by John Deere

Lawn and Garden Product Information Handbook published in 2000, by John Deere

Lawn and Garden Product Information Handbook published in 2001, by John Deere

John Deere Lawn and Garden Tractors published in 1995

Lawn and Garden Tractors published in 1998, by John Deere

Lawn and Garden Tractors published in 2000, by John Deere

Lawn & Grounds Care Sales Manual published in 1997, by John Deere*

Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere

Grounds Care Equipment Purchasing Guide published in 1999, by John Deere

Grounds Care Equipment Purchasing Guide published in 2000, by John Deere

Grounds Care Equipment Purchasing Guide published in 2001, by John Deere

*Publication contains known errors.

Operator's Manual 415 and 455 Lawn and Garden Tractors (OMM124545) published in 1996

Operator's Manual 455 Lawn and Garden Tractor (OMM117695) published in 1992

Operator's Manual 40 Loader (OMM123903) published in 1996

Manufacturer

Yanmar 3TNA72UJ3

Fuel Type

Diesel

Configuration

3-cylinder, liquid-cooled horizontal-shaft OHV

Displacement

881 cc 53.8 ci

Bore/Stroke

2.83x2.83 inches 72 x 72 mm

Power

22 hp 16.4 kW

Fuel system

electric indirect injection

Air cleaner

dry type

Pre-heating

glow plugs

Compression

21.6:1

Rated RPM

3350

Starter volts

12

Coolant capacity

3 qts 2.8 L

Oil capacity

3 qts 2.8 L

Transmission

Tuff Torq K91

Type

shaft-driven hydrostatic

Gears

infinite forward and reverse

2WS Oil capacity

7 qts 6.6 L

AWS Oil capacity

6 qts 5.7 L

Oil type

John Deere Low Viscosity HY-GARD J20D

With 26-inch rear tires.

Lawn/turf front

18x8.50-8

Lawn/turf rear

26x12.00-12

Lawn/turf front

16x6.50-8

16x7.50-8

Lawn/turf rear

23x8.50-12

23x10.50-12

2WS Wheelbase

50.4 inches 128 cm

AWS Wheelbase

49.4 inches 125 cm

Length

75 inches 190 cm

Width

48 inches 121 cm

Height

51.2 inches 130 cm

Height (cab)

74 inches 187 cm

2WS Weight

965 lbs 437 kg

AWS Weight

1060 lbs 480 kg

5-bolt flange rear axle

48" mid-mount mower deck

54" mid-mount mower deck

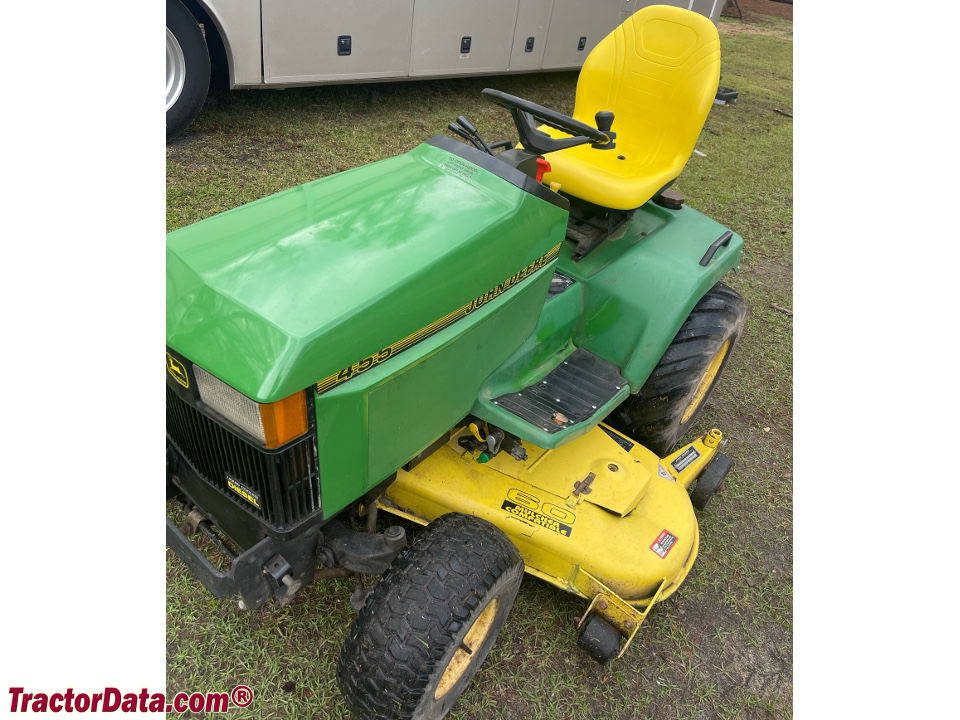

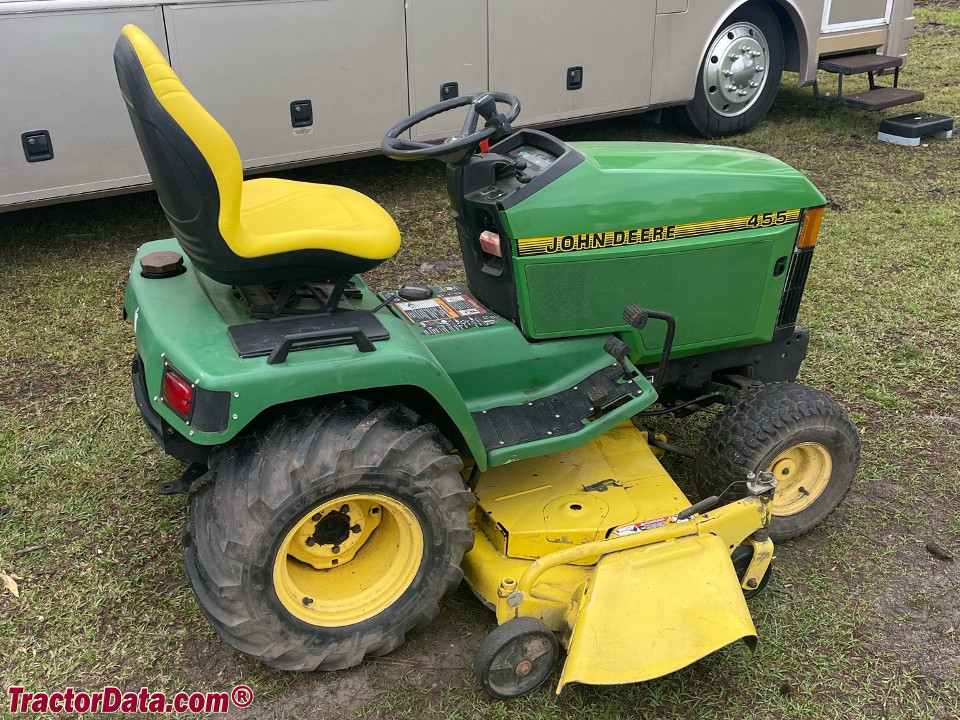

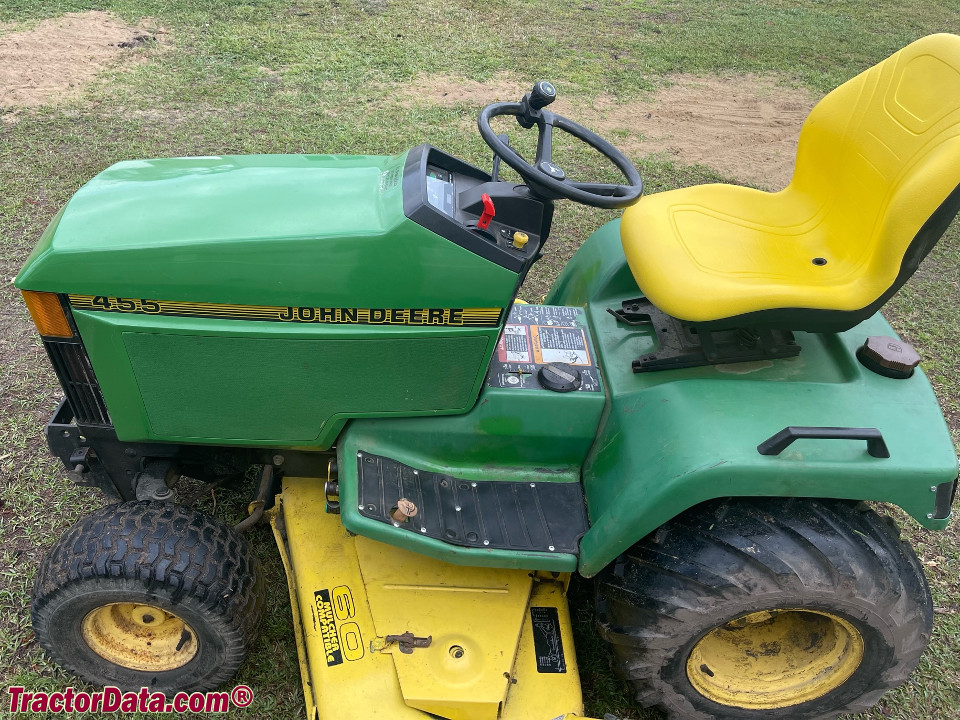

60" mid-mount mower deck

Snowblower

Blade

Front-end loader

The model 40 front-end loader could only be used on tractors with two-wheel steering. The 455 was compatible with a 42-inch hydraulic tiller (M04390X) on the three-point hitch. To mount the front blade or snowblower the 455 requires the front hitch (BM17347). The front PTO kit (BM17330) is required for a snowblower.
