John Deere D140

The John Deere D140 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 22 hp 16.4 kW. Transmission: Tuff Torq T40. Operating weight: 525 lbs 238 kg.

Overview

	2011 - 2017 Model year 2011-20122013-2017 D100 SeriesLawn tractor
2011 - 2017
Model year 2011-20122013-2017
D100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Original price	$1,999 (2011)

Variants
D130	42-inch deck
D140	48-inch deck

John Deere D140 Engine
22HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
	2.4 gal (California model) 9.1 L
Engine details ...

John Deere D140 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical shoe on transaxle brakes
Open operator station. Adjustable 15-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure.

Power Take-off (PTO)
Mid PTO	electric independent

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	525 lbs 238 kg
Front tire	15x6.00-6
Rear tire	20x10.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	9
Battery volts	12
Battery Group	U1

References
Operator's Manual D100 Series (OMGX24147) published in 2011
Operator's Manual D100 Series (OMGX24230) published in 2012
Riding Lawn Tractors published in 2015, by John Deere
Riding Lawn Tractors published in 2017, by John Deere

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 40
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	655 cc 40 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power (gross)	22 hp 16.4 kW
Air cleaner	cartridge
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.010 inches 0.254 mm
Intake valve clearance	0.005 inches 0.127 mm
Exhaust valve clearance	0.005 inches 0.127 mm
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Tuff Torq T40

Transmission	Tuff Torq T40
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Automatic transmission with right-side accelerator and decelerator/reverse foot pedals. Left-side brake pedal. Cruise control is standard equipment.

Dimensions

John Deere D140 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x10.00-8

Dimensions
Wheelbase	48.9 inches 124 cm
Length	68.75 inches 174 cm
Width	60 inches (mower) 152 cm
Height	45 inches 114 cm
Weight	525 lbs 238 kg

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade

48" Mower deck
Type	mid-mount John Deere Edge 48
	3-blade with manual with spring assist lift
Cutting width	48 inches 121 cm
Overall width	60 inches 152 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	13

Photos

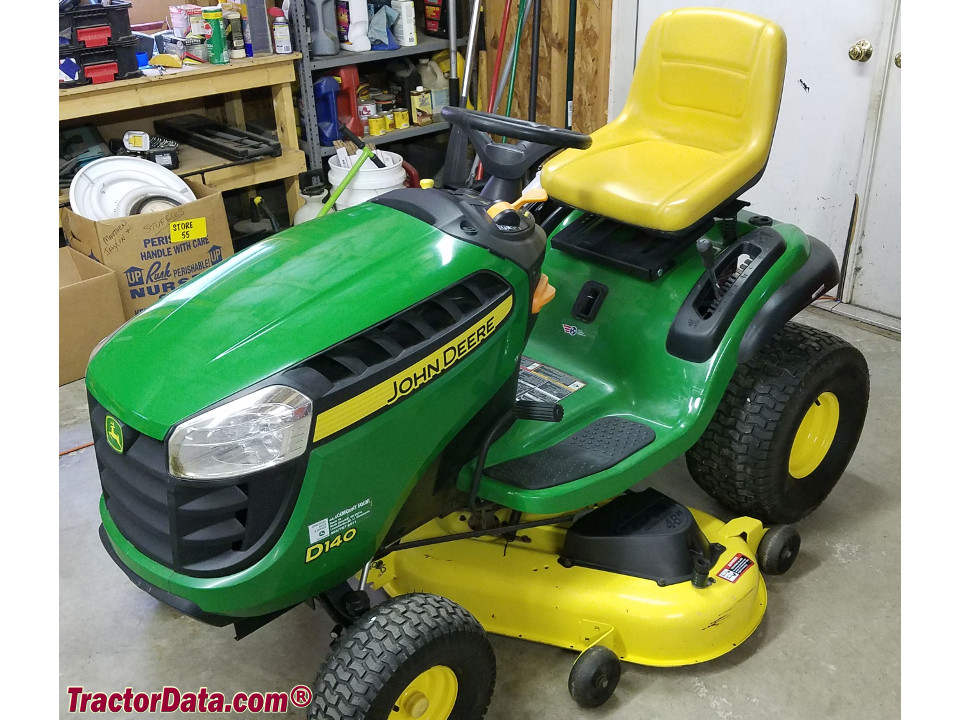

John Deere D140

John Deere D140
