John Deere E140
The John Deere E140 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq TL200. Operating weight: 475 lbs 215 kg.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
2.4 gal
9.1 L
Transmission
Tuff Torq TL200
Operating Weight
475 lbs
215 kg
Overview
 | 2018 - 2020
E100 SeriesLawn tractor
E100 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $1,999 in 2018 | |
John Deere E140 Engine | |
|---|---|
22HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 2.4 gal
9.1 L |
Engine details ...  | |
John Deere E140 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Wet disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Weight | 475 lbs
215 kg |
Front tire | 15x6-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 9 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual E100 Series (OMUC17903) published in 2017 | |
Operator's Manual E100 Series (OMUC20527) published in 2018 | |
Operator's Manual E100 Series (OMUC23650) published in 2019 | |
Riding Lawn Tractors published in 2019, by John Deere |
Engine
Engine Detail — 724 cc / 44.18 ci Gasoline
Manufacturer | Briggs & Stratton 44N677 |
Configuration | 2-cylinder |
air gasoline | |
vertical-shaft V-Twin | |
Displacement | 724 cc
44.18 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power (gross) | 22 hp
16.4 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.0 qts
1.9 L |
2.8 qts (Easy Change)
2.6 L | |
Sparkplug gap | 0.030 inches
0.762 mm |

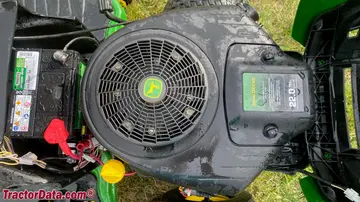

John Deere E140 Engine | |
|---|---|
 | |
Image courtesy of Sean Celia |
Transmission
Transmission — Tuff Torq TL200
Transmission | Tuff Torq TL200 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
John Deere E140 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Length | 69.5 inches
176 cm |
Height | 44.5 inches
113 cm |
Shipping weight | 475 lbs
215 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount John Deere |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Overall width | 60.8 inches
154 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Cut positions | 13 |
Photos

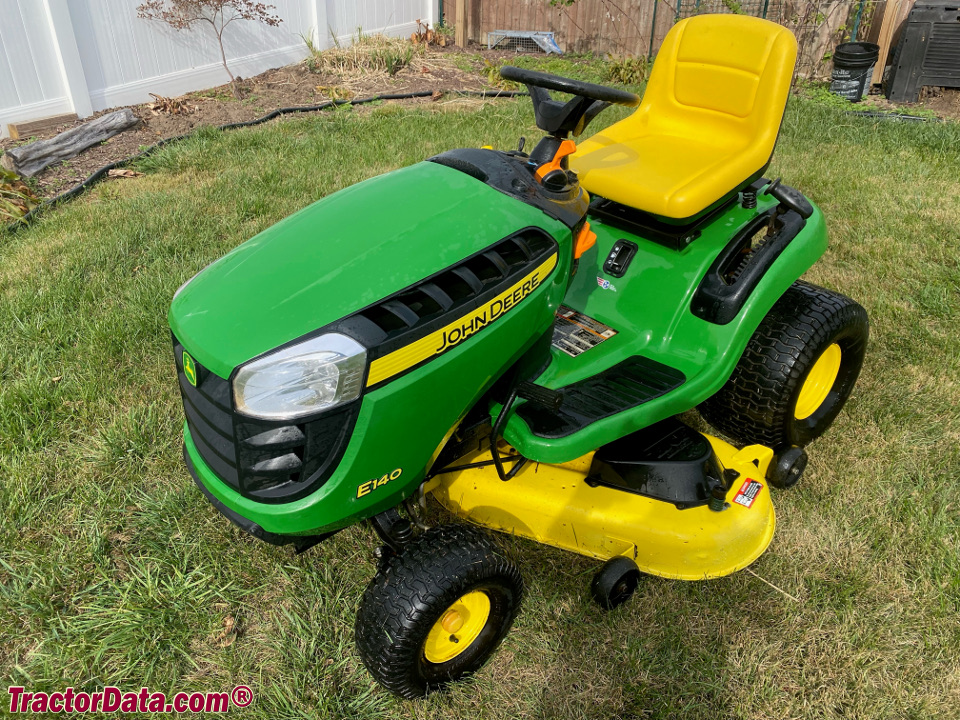

John Deere E140

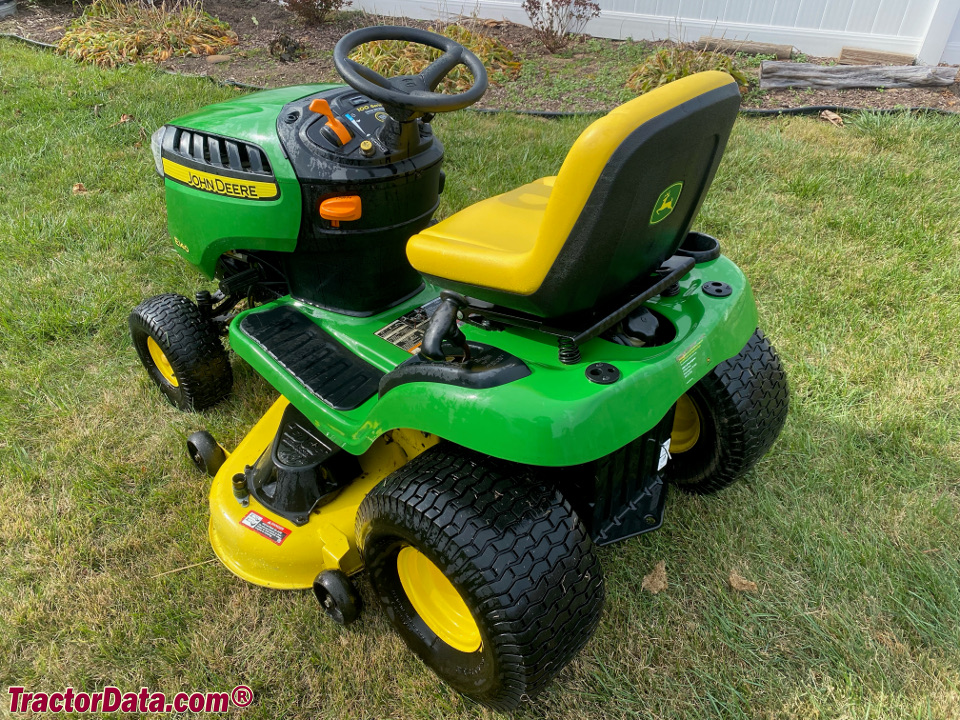

John Deere E140

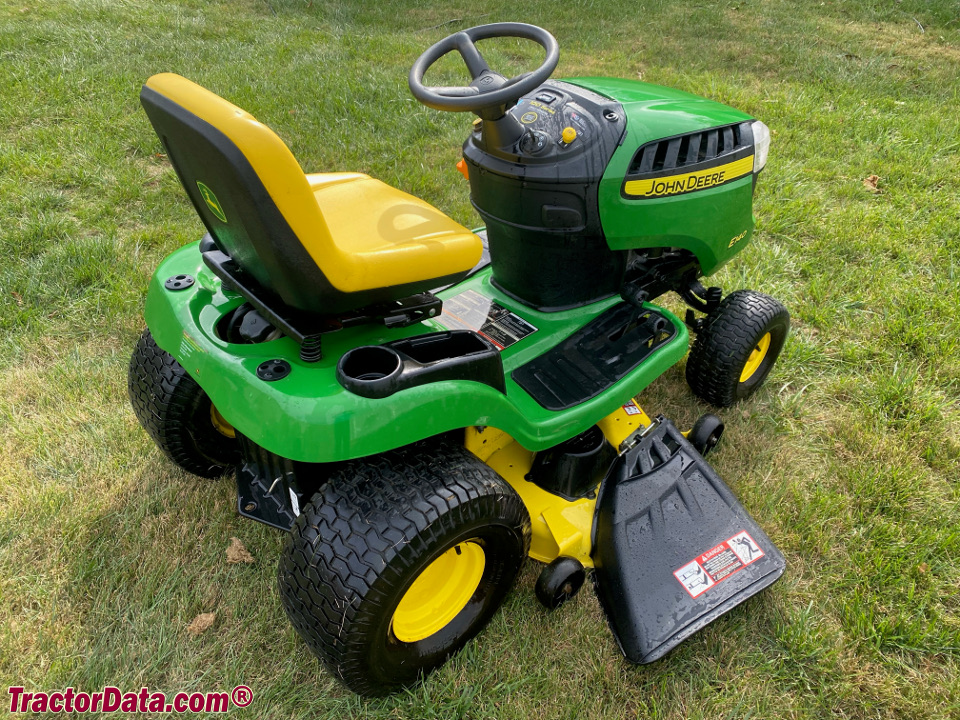

John Deere E140
John Deere E140
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere E140 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere E140.
Estimated Continuous Field Runtime: 2.1 hrs
Approximately 2.1 hours of continuous field operation at ~75% rated power on a full tank (2.4 gal / 9.1 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere E140 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere E140.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
Direct Competitor Comparison
Compare John Deere E140 against same-era industry alternatives in the same horsepower class.
Current Model
John Deere Lawn Tractors
John Deere E140
Engine Power:Gasoline (gross): 22 hp / 16.4 kW
★ Baseline Reference
