John Deere F525

The John Deere F525 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 534 cc 32.6 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 527 lbs (without deck) 239 kg.

Overview

	1990 - 2002 F500 SeriesFront-mount mower
1990 - 2002
F500 Series
Front-mount mower

1990 - 2002
F500 Series
Front-mount mower

Production
Manufacturer	John Deere
Front-mount mower
Built in Horicon, Wisconsin, USA
Original price	$5,695 (1995 )
	$5,724 (2002 )

John Deere F525 Engine
17HP Kawasaki 534cc 1-cyl gasoline
Fuel tank	2.75 gal 10.4 L
Engine details ...

John Deere F525 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	34.8 inches 88 cm
Weight	527 to 740 pounds
Front tire	18x6.50-8
Rear tire	13x6.50-6
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 1996, by John Deere
Lawn and Garden Product Information Handbook published in 1997, by John Deere
Lawn and Garden Product Information Handbook published in 1998, by John Deere
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
Lawn and Garden Product Information Handbook published in 2002, by John Deere
F500 Series Front Mowers published in 1992, by John Deere
F500 Series Front Mowers published in 1994, by John Deere
Operator's Manual F510 and F525 Front Mowers (OMM96424) published in 1992
Walk-Behind - Riders - Lawn Tractors - Residential Front Mowers published in 1996, by John Deere
Lawn & Garden Equipment published in 1990, by John Deere
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere
Lawn & Grounds Care Sales Manual published in 1997, by John Deere*
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
Deere Season 2002 published by John Deere
*Publication contains known errors.

Engine

	1990 - 2002 F500 SeriesFront-mount mower
1990 - 2002
F500 Series
Front-mount mower

1990 - 2002
F500 Series
Front-mount mower

Engine Detail — 534 cc / 32.6 ci Gasoline

Manufacturer	Kawasaki FC540V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	534 cc 32.6 ci
Bore/Stroke	3.50x3.39 inches 89 x 86 mm
Power (gross)	17 hp 12.7 kW
Air cleaner	dry
Idle RPM	1450-3250
Starter	electric
Starter volts	12
Oil capacity	2.7 qts 2.6 L
Sparkplug	NGK BPR5ES
	Champion RN11YC
Sparkplug gap	0.025 inches 0.635 mm

Transmission

	1990 - 2002 F500 SeriesFront-mount mower
1990 - 2002
F500 Series
Front-mount mower

1990 - 2002
F500 Series
Front-mount mower

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

	1990 - 2002 F500 SeriesFront-mount mower
1990 - 2002
F500 Series
Front-mount mower

1990 - 2002
F500 Series
Front-mount mower

John Deere F525 Tires
Lawn/turf front	18x6.50-8
Lawn/turf rear	13x6.50-6

Dimensions
Wheelbase	34.8 inches 88 cm
Length	64.9 inches (without deck) 164 cm
	83.9 inches (38-inch deck) 213 cm
	85 inches (48-inch deck) 215 cm
Height (steering wheel)	42 inches 106 cm
Height (hood)	22.5 inches 57 cm
Weight	527 lbs (without deck) 239 kg
	740 lbs (48-inch deck) 335 kg
Ground clearance	3.5 inches 8 cm

Attachments

	1990 - 2002 F500 SeriesFront-mount mower
1990 - 2002
F500 Series
Front-mount mower

1990 - 2002
F500 Series
Front-mount mower

Attachment overview
38" front-mount mower deck
48" front-mount mower deck
Snowblower

Photos

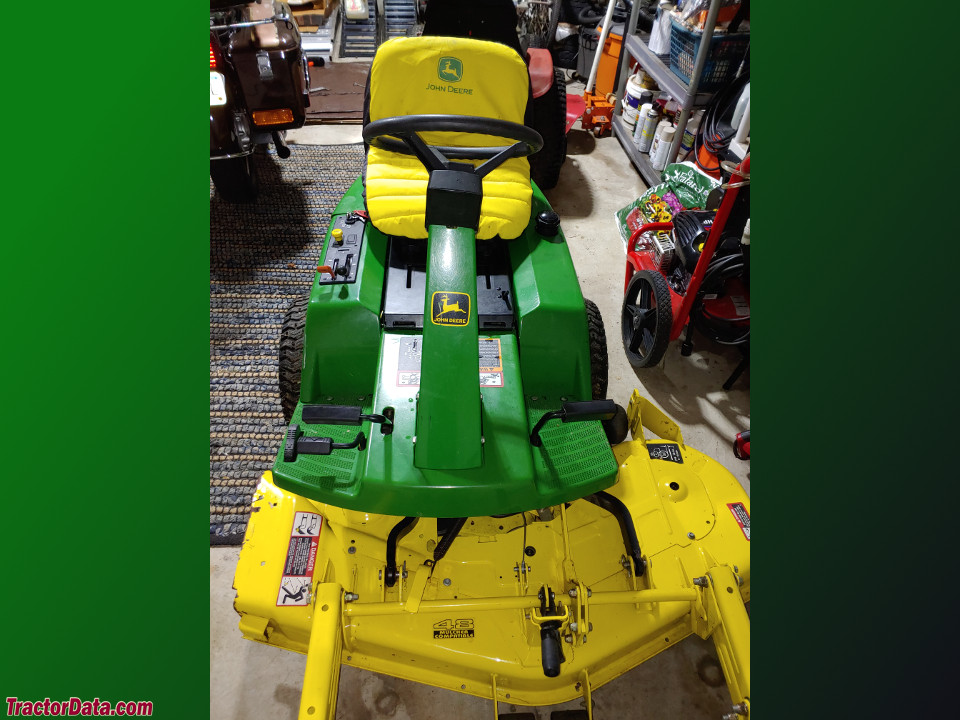

John Deere F525

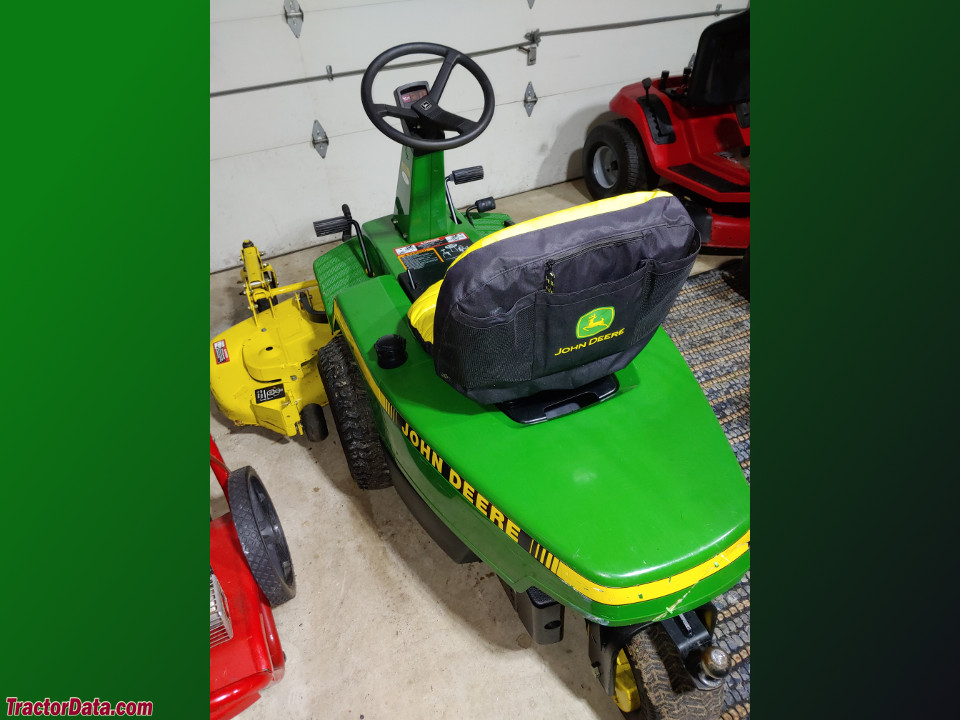

John Deere F525

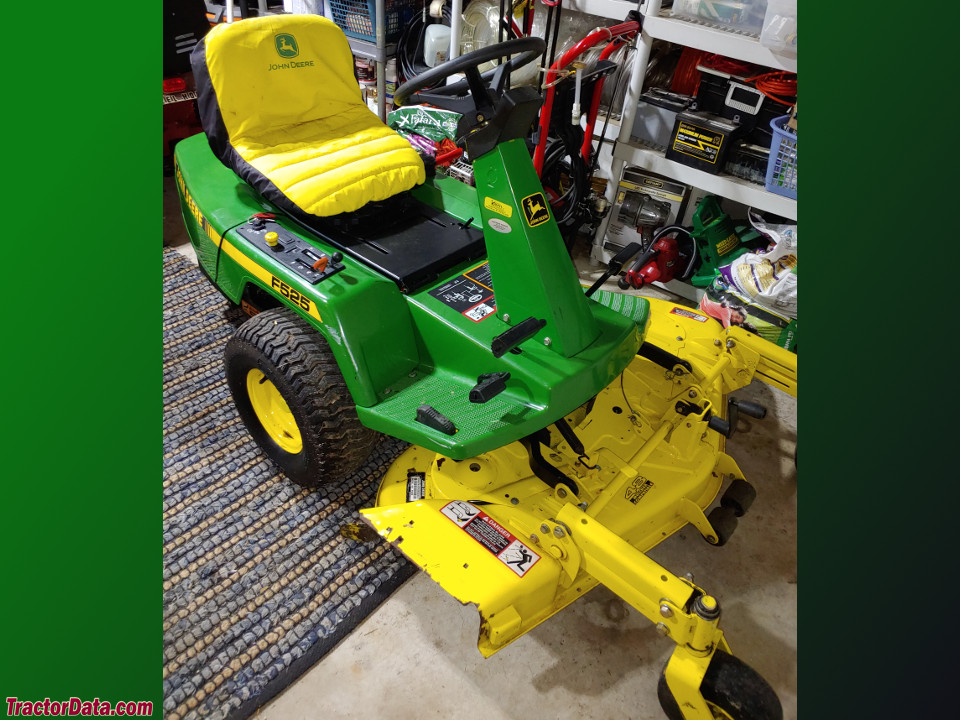

John Deere F525
