John Deere GT262
The John Deere GT262 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 534 cc 32.6 ci engine. The listed engine power is Gasoline (listed): 17 hp / 12.7 kW. Transmission: Tuff Torq E0905. Operating weight: 490 lbs*Weight of tractor only. 222 kg.
Engine Power
Gasoline (listed): 17 hp / 12.7 kW
Fuel & Capacities
2.75 gal
10.4 L
Transmission
Tuff Torq E0905
Operating Weight
490 lbs*Weight of tractor only.
222 kg
Overview
 | 1992 - 1998
GT200 SeriesGarden tractor
GT200 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $4,599 in 1995 | |
John Deere GT262 Engine | |
|---|---|
17HP Kawasaki 534cc 1-cyl gasoline | |
Fuel tank | 2.75 gal
10.4 L |
Engine details ...  | |
John Deere GT262 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Internal wet disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.75 inches
121 cm |
Weight | 490 lbs
222 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 295 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Lawn and Garden Product Information Handbook published in 1996, by John Deere | |
Lawn and Garden Product Information Handbook published in 1997, by John Deere | |
Lawn and Garden Product Information Handbook published in 1998, by John Deere | |
GT 262 Lawn & Garden Tractors (OMM113559) published in 1990 | |
Lawn and Garden Tractors published in 1994, by John Deere | |
John Deere Lawn and Garden Tractors published in 1995 | |
Lawn and Garden Tractors published in 1998, by John Deere | |
Lawn & Grounds Care Sales Manual published in 1997, by John Deere* | |
*Publication contains known errors. |
Engine
Engine Detail — 534 cc / 32.6 ci Gasoline
Manufacturer | Kawasaki FC540V |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 534 cc
32.6 ci |
Bore/Stroke | 3.50x3.38 inches
89 x 86 mm |
Power | 17 hp
12.7 kW |
Fuel system | carburetor |
Air cleaner | paper and foam |
Compression | 8.3:1 |
Idle RPM | 1400-3350 |
Starter volts | 12 |
Oil capacity | 1.7 qts
1.6 L |
Oil change | 100 h |
John Deere GT262 Engine | |
|---|---|
 |
Transmission
Transmission — Tuff Torq E0905
Transmission | Tuff Torq E0905 |
Type | belt-driven gear |
Gears | 6 forward and 1 reverse |
Oil capacity | 3.4 qts
3.2 L |
 | |
Dimensions
John Deere GT262 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 47.75 inches
121 cm |
Length | 69 inches
175 cm |
Width | 39 inches
99 cm |
Height | 43 inches
109 cm |
Weight | 490 lbs*Weight of tractor only.
222 kg |
Front tread | 29 inches
73 cm |
Rear tread | 28.5/30.75 inches
72/78 cm |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
The GT262 was compatible with the M03262X 30-inch mechanical tiller. |
Photos

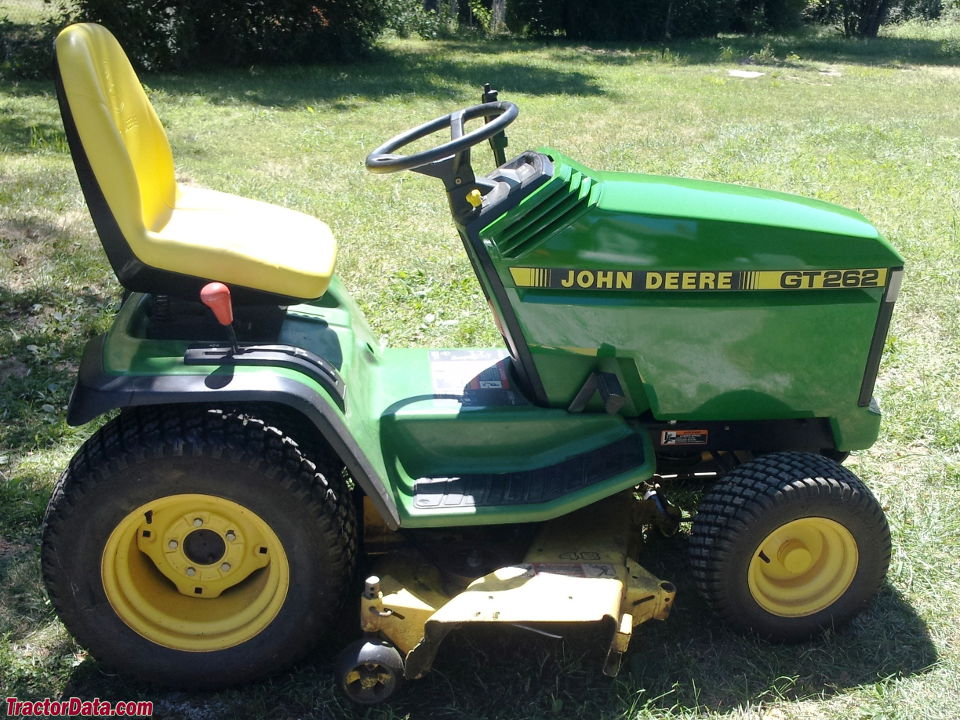

John Deere GT262
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere GT262 based on its 17 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere GT262.
Estimated Continuous Field Runtime: 3.2 hrs
Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (2.8 gal / 10.4 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere GT262 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere GT262.
Converted Equivalents:
Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
