John Deere LX277

The John Deere LX277 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 493 cc 30.1 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Tuff Torq K62. Operating weight: 487 to 560 pounds.

Engine Power
Gasoline (gross): 17 hp / 12.7 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
Tuff Torq K62
Operating Weight
487 to 560 pounds

Overview

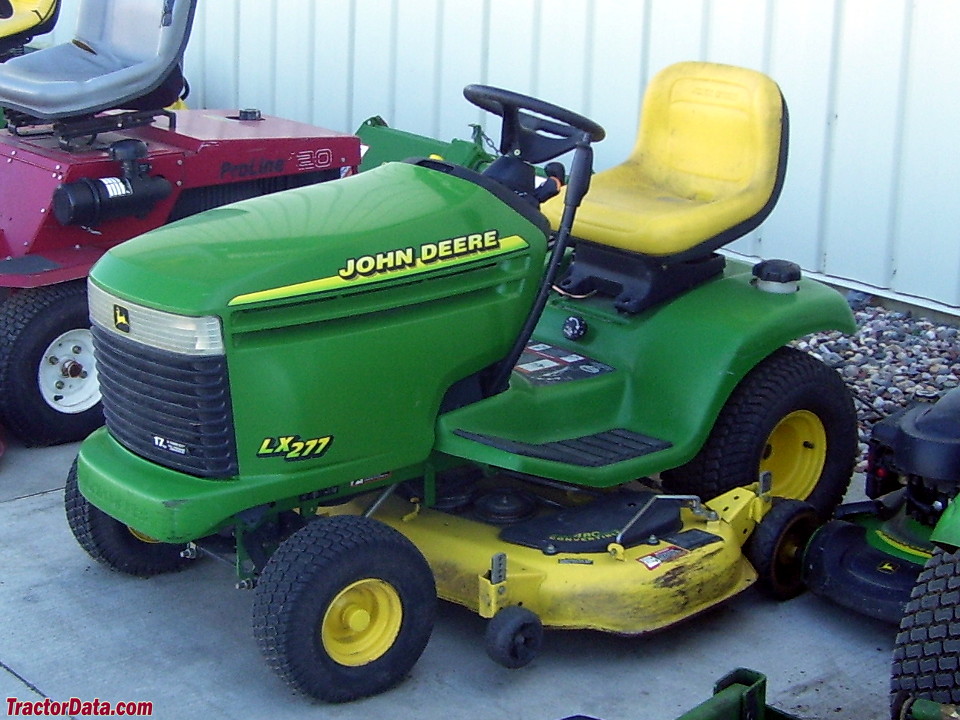

John Deere LX277 tractor photo
1999 - 2003 LX200 SeriesLawn tractor LX200 Series Lawn tractor
Production
Manufacturer
John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price
$4,150 (2001 42" )
$4,400 (2001 48" )
$5,000 (2001 48" AWS )
Variants
LX277AWS
all-wheel steering
John Deere LX277 Engine
17HP Kawasaki 493cc 2-cyl gasoline
2WS Fuel tank
3 gal 11.4 L
AWS Fuel tank
2.75 gal 10.4 L
Engine details ...
John Deere LX277 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual sector and pinion
AWS Steering
all-wheel-steering
Mechanical wet disc brakes
Open operator station
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
2WS Wheelbase
47.5 inches 120 cm
AWS Wheelbase
48.3 inches 122 cm
Weight
487 to 560 pounds
Front tire
15x6.00-6
Rear tire
20x10.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
13
Battery CCA
500
Battery volts
12
Battery Group
51
References
LX277 references literature
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Lawn and Garden Product Information Handbook published in 2003, by John Deere
LX Series Lawn Tractors published in 2000, by John Deere
Operator's Manual LX255, LX277, LX277AWS, LX279, LX288 (OMM142612) published in 1998
Operator's Manual LX266, LX277, LX277AWS, LX279, and LX288 (OMM148972) published in 2001
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
Deere Season 2002 published by John Deere

Engine

Engine Detail — 493 cc / 30.1 ci Gasoline

Manufacturer
Kawasaki FH500V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
493 cc 30.1 ci
Bore/Stroke
2.68x2.68 inches 68 x 68 mm
Power (gross)
17 hp 12.7 kW
Air cleaner
paper element with foam pre-cleaner
Rated RPM
3400
Starter volts
12
Sparkplug
Champion RCJ8Y
Sparkplug gap
0.040 inches*Kawasaki FH engine manuals specify 0.030 inch gap. 1.016 mm
Oil capacity
1.9 qts 1.8 L

Transmission

Transmission — Tuff Torq K62

Transmission
Tuff Torq K62
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil change
fill as needed
LX277 K62 belt-driven hydrostatic speeds

Dimensions

John Deere LX277 Tires
Lawn/turf front
15x6.00-6
2WS Lawn/turf rear
20x10.00-8
AWS Lawn/turf rear
20x10.00-10
Dimensions
2WS Wheelbase
47.5 inches 120 cm
AWS Wheelbase
48.3 inches 122 cm
2WS Length
69.4 inches 176 cm
AWS Length
70 inches 177 cm
Width
36.8 inches 93 cm
Height
43.6 inches 110 cm
2WS Shipping weight
487 lbs 220 kg
AWS Shipping weight
560 lbs 254 kg
Front tread
29.1 inches 73 cm
Rear tread
26.8 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Advertised attachments for the LX200 series included two rear baggers: 7-bushel for the 42-inch deck and a 2-bag Power Flow for the 48-inch deck. Forty inch aerators, tow-behind thatcherator, and 38 or 48 inch front thachers. Sprayers in 6, 15, and 25-bagglon sizes. The No. 7 utility cart was also listed as compatible.

Photos

John Deere LX277, left side.

John Deere LX277, left side.

John Deere LX277, right side.

John Deere LX277, right side.

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere Lawn Tractors John Deere LX277 based on its 17 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere LX277.

Estimated Continuous Field Runtime: 3.4 hrs

Approximately 3.4 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere LX277 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere LX277.

Converted Equivalents:

Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS

Direct Competitor Comparison

Compare John Deere LX277 against same-era industry alternatives in the same horsepower class.

Current Model
John Deere Lawn Tractors

John Deere LX277

Engine Power:Gasoline (gross): 17 hp / 12.7 kW
★ Baseline Reference
FordMarket Competitor

Ford 1200

Engine Power:15.3
Production Years:1979 - 1982
KubotaMarket Competitor

Kubota A-15

Engine Power:15.3
Production Years:1988 - 1992
International HarvesterMarket Competitor

International Harvester 154 Lo-Boy

Engine Power:15.6
Production Years:1968 - 1974
Massey FergusonMarket Competitor

Massey Ferguson 1205

Engine Power:15.7
Production Years:1997 - 2003
