John Deere X320
The John Deere X320 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq K58. Operating weight: 133 lbs 60 kg.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Tuff Torq K58
Operating Weight
548 lbs*Weight of tractor only.
248 kg
Overview
 | 2006 - 2015
Model year 2006-20102011-2015
Select X300 SeriesLawn tractor
Select X300 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $4,099 in 2010 | |
Variants | |
|---|---|
X320 | two-wheel steer |
X324 | four-wheel steer |
John Deere X320 Engine | |
|---|---|
22HP Kawasaki 675cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
John Deere X320 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. Optional sunshade and vinyl weather enclosure. Adjustable seat with seven inches of travel. Cupholder and tool tray standard. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Weight | 548 lbs
248 kg |
Front tire | 15x6.5-8 |
Rear tire | 22x11-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 160 (early) |
195 (late) | |
Battery volts | 12 |
References | |
|---|---|
 | |
Select Series Tractors published in 2007, by John Deere | |
Select Series Tractors published in 2009, by John Deere | |
Operator's Manual X300 Tractors (OMM158184) published in 2008 | |
Operator's Manual X300 Tractors (OMM161628) published in 2009 | |
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere |
Engine
Engine Detail — 675 cc / 41.2 ci Gasoline
Manufacturer | Kawasaki FH661V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 675 cc
41.2 ci |
Bore/Stroke | 2.96x2.99 inches
75 x 76 mm |
Power (gross) | 22 hp
16.4 kW |
Fuel system | carburetor |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.013 inches
0.330 mm |
Intake valve clearance | 0.004 inches (Cold)
0.102 mm |
Exhaust valve clearance | 0.004 inches (Cold)
0.102 mm |
Transmission
Transmission — Tuff Torq K58
Transmission | Tuff Torq K58 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
John Deere X320 Tires | |
|---|---|
Lawn/turf front | 15x6.5-8 |
Lawn/turf rear | 22x11-10 |
Dimensions | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Length | 72 inches
182 cm |
Width | 38.5 inches
97 cm |
Height | 43 inches
109 cm |
Operating weight | 548 lbs*Weight of tractor only.
248 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount John Deere 48X |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Weight | 133 lbs
60 kg |
Overall width | 61.5 inches
156 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos
John Deere X320, right side.

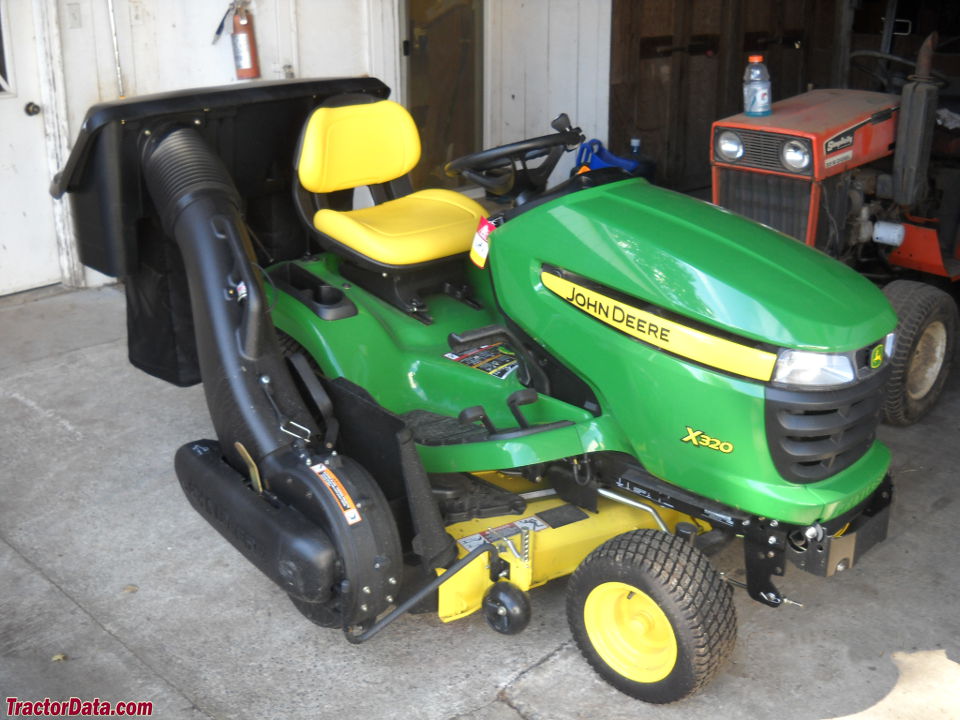

John Deere X320 with bagger
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere X320 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere X320.
Estimated Continuous Field Runtime: 3.1 hrs
Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere X320 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere X320.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
