John Deere X360
The John Deere X360 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq K58H. Operating weight: 133 lbs 60 kg.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Tuff Torq K58H
Operating Weight
570 lbs*Weight of tractor only.
258 kg
Overview
 | 2008 - 2015
Model year 2008-20102011-2015
Select X300 SeriesLawn tractor
Select X300 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $5,099 in 2010 | |
The John Deere X360 was the premium tractor in the Select X300 series due to its hydraulic power steering and lift. | |
John Deere X360 Engine | |
|---|---|
22HP Kawasaki 675cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
John Deere X360 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Wet disc brakes | |
Open operator station. Optional sunshade and vinyl weather enclosure. Adjustable seat with seven inches of travel. Cupholder and tool tray standard. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 570 lbs
258 kg |
Front tire | 15x6.50-8 |
Rear tire | 22x11.00-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 195 |
Battery volts | 12 |
References | |
|---|---|
 | |
Select Series Tractors published in 2009, by John Deere | |
Operator's Manual X300 Tractors (OMM158184) published in 2008 | |
Operator's Manual X300 Tractors (OMM161628) published in 2009 |
Engine
Engine Detail — 675 cc / 41.2 ci Gasoline
Manufacturer | Kawasaki FH661V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 675 cc
41.2 ci |
Bore/Stroke | 2.96x2.99 inches
75 x 76 mm |
Power (gross) | 22 hp
16.4 kW |
Fuel system | carburetor |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.013 inches
0.330 mm |
Intake valve clearance | 0.004 inches (Cold)
0.102 mm |
Exhaust valve clearance | 0.004 inches (Cold)
0.102 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Tuff Torq K58H
Transmission | Tuff Torq K58H | |
Type | belt-driven hydrostatic | |
Gears | infinite forward and reverse | |
Oil capacity | 3 qts
2.8 L | |
Oil type | John Deere HY-GARD (J20D) | John Deere HY-GARD |
Oil change | 200 h | |
 | ||
John Deere HY-GARD |
|---|

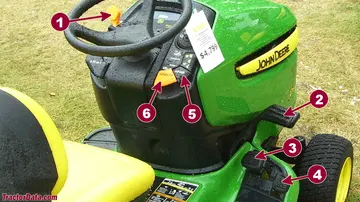

X360 Transmission Controls | |
|---|---|
 | |
1 | Throttle |
2 | Brake |
3 | Forward |
4 | Reverse |
5 | Cruise control |
6 | Parking brake |
Dimensions
John Deere X360 Tires | |
|---|---|
Lawn/turf front | 15x6.50-8 |
Lawn/turf rear | 22x11.00-10 |
Dimensions | |
|---|---|
Length | 72 inches
182 cm |
Width | 41 inches
104 cm |
Height | 43 inches
109 cm |
Operating weight | 570 lbs*Weight of tractor only.
258 kg |
Attachments
48" Mower deck | |
|---|---|
Type | mid-mount John Deere 48X |
3-blade with hydraulic lift | |
Cutting width | 48 inches
121 cm |
Weight | 133 lbs
60 kg |
Overall width | 61.5 inches
156 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos
John Deere X360 right-side profile

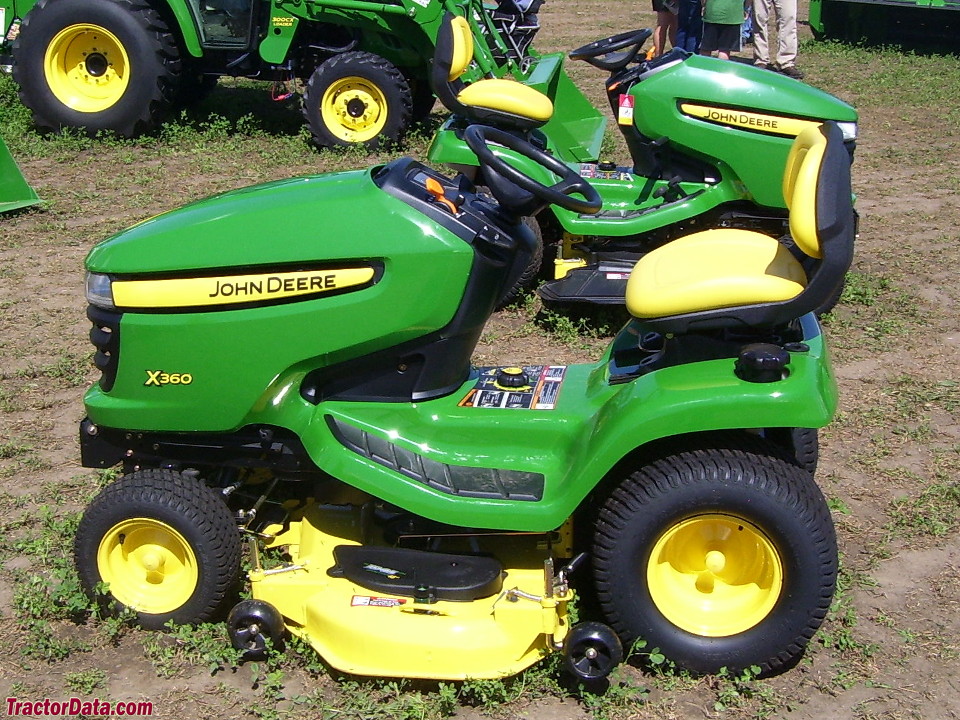

John Deere X360 left-side profile

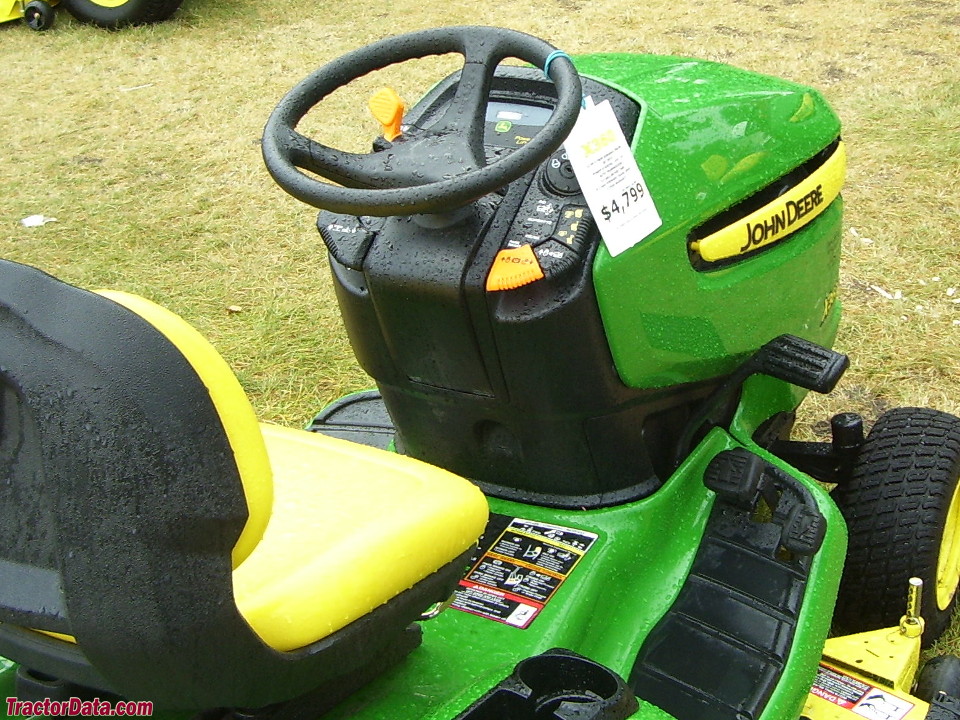

John Deere X360 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere X360 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere X360.
Estimated Continuous Field Runtime: 3.1 hrs
Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere X360 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere X360.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
