John Deere X380
The John Deere X380 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Tuff Torq K58. Operating weight: 508 lbs 230 kg.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
Tuff Torq K58
Operating Weight
508 lbs
230 kg
Overview
 | 2016 - 2025
Model year 2016-20202021-2025
Select X300 SeriesLawn tractor
Select X300 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Original price | $4,399 (2016 48-inch ) |
$4,699 (2016 54-inch ) | |
Variants | |
|---|---|
X380 | 2-wheel steering |
X384 | 4-wheel steering |
John Deere X380 Engine | |
|---|---|
22HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
John Deere X380 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Wet disc brakes | |
Open operator station with 15-inch seat. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Weight | 508 lbs
230 kg |
Front tire | 15x6.50-8 |
Rear tire | 22x11-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
The Complete Range of Lawn Care Solutions published in 2016, by John Deere | |
Riding Lawn Tractors published in 2017, by John Deere | |
Riding Lawn Tractors published in 2019, by John Deere | |
Riding Lawn Tractors published in 2016, by John Deere | |
Lawn Care Solutions published in 2020, by John Deere | |
Operator's Manual X300 Tractors (OMM174375) published in 2016 | |
Operator's Manual X300 Tractors (OMUC22094) published in 2019 |
Engine
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FS651V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.07x2.99 inches
78 x 76 mm |
Power (gross) | 22 hp
16.4 kW |
Fuel system | carburetor |
Air cleaner | dry with foam precleaner |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2.2 qts
2.1 L |
Oil change | 100 h |
Transmission
Transmission — Tuff Torq K58
Transmission | Tuff Torq K58 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
John Deere X380 Tires | |
|---|---|
Lawn/turf front | 15x6.50-8 |
Lawn/turf rear | 22x11-10 |
Dimensions | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Length | 72 inches
182 cm |
Width | 38.5 inches
97 cm |
Height | 47 inches
119 cm |
Weight | 508 lbs
230 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
Snowblower | |
Blade |
Photos

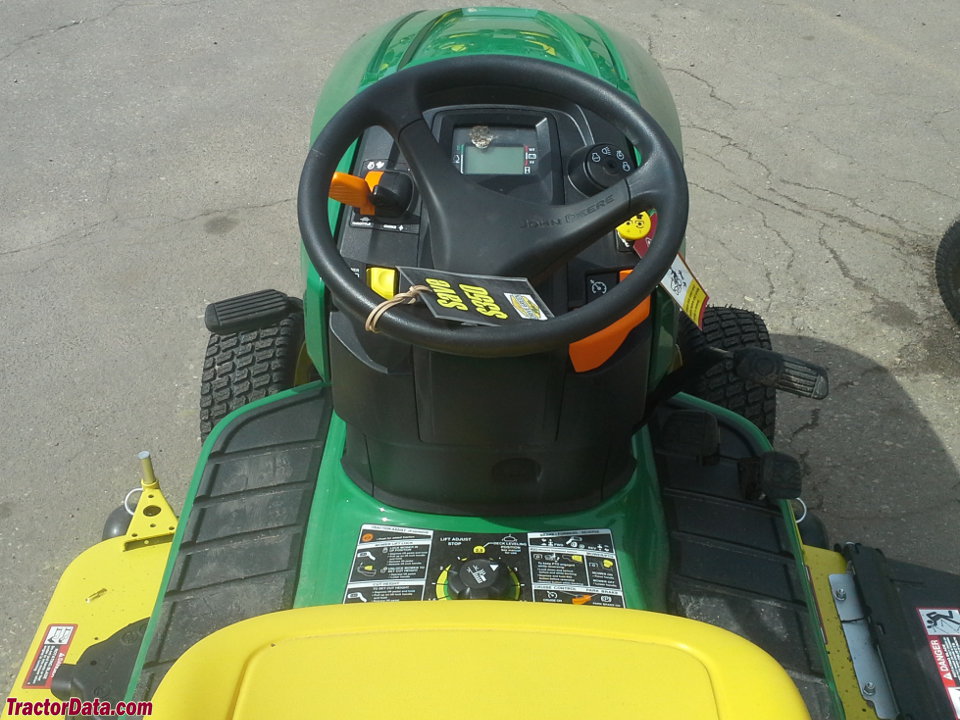

John Deere X380
John Deere X380
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere X380 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere X380.
Estimated Continuous Field Runtime: 2.9 hrs
Approximately 2.9 hours of continuous field operation at ~75% rated power on a full tank (3.3 gal / 12.5 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere X380 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere X380.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
