John Deere Z355R
The John Deere Z355R is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 22 hp / 16.4 kW. Transmission: Hydro-Gear EZT. Operating weight: 575 lbs 260 kg.
Engine Power
Gasoline (listed): 22 hp / 16.4 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
Hydro-Gear EZT
Operating Weight
575 lbs
260 kg
Overview
 | 2017 -
Z300 SeriesZero-turn mower |
|---|---|
2017 - | |
Z300 Series | |
Zero-turn mower | |
2017 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | John Deere |
Zero-turn mower | |
Built in Greeneville, Tennessee, USA | |
Original price was $3,199 in 2021 | |
John Deere Z355R Engine | |
|---|---|
22HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
John Deere Z355R Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.1 inches
127 cm |
Weight | 575 lbs
260 kg |
Front tire | 13x5.0-6 |
Rear tire | 20x9.0-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Residential Zero-Turn-Radius ZTrak Mowers published in 2017, by John Deere | |
Residential Zero-Turn-Radius ZTrak Mowers published in 2017, by John Deere | |
Residential ZTrak Mowers published in 2018, by John Deere | |
ZTrak Zero-Turn Mowers published in 2020, by John Deere |
Engine
| 2017 -
Z300 SeriesZero-turn mower |
|---|---|
2017 - | |
Z300 Series | |
Zero-turn mower | |
2017 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power | 22 hp
16.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2017 -
Z300 SeriesZero-turn mower |
|---|---|
2017 - | |
Z300 Series | |
Zero-turn mower | |
2017 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
Transmission — Hydro-Gear EZT
Transmission | Hydro-Gear EZT |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2017 -
Z300 SeriesZero-turn mower |
|---|---|
2017 - | |
Z300 Series | |
Zero-turn mower | |
2017 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
John Deere Z355R Tires | |
|---|---|
Lawn/turf front | 13x5.0-6 |
Lawn/turf rear | 20x9.0-10 |
Dimensions | |
|---|---|
Wheelbase | 50.1 inches
127 cm |
Length | 76.1 inches
193 cm |
Height | 40.1 inches
101 cm |
Weight | 575 lbs
260 kg |
Attachments
| 2017 -
Z300 SeriesZero-turn mower |
|---|---|
2017 - | |
Z300 Series | |
Zero-turn mower | |
2017 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount John Deere |
3-blade | |
Cutting width | 48 inches
121 cm |
Photos

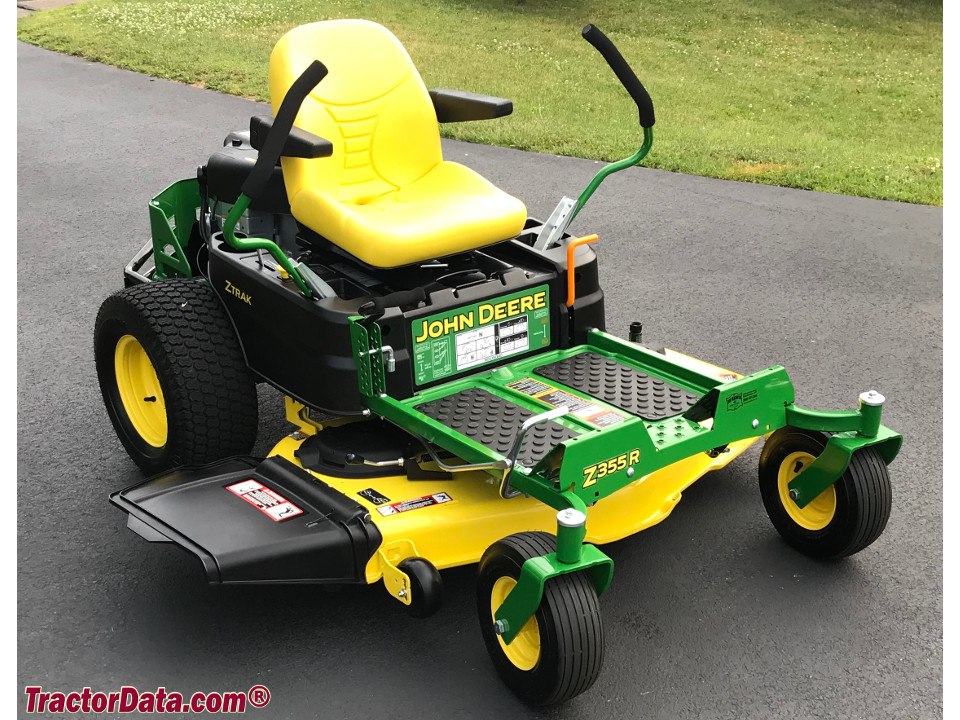

John Deere Z355R
John Deere Lawn Tractors John Deere Z355R Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere Z355R.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
