Kubota B1550

The Kubota B1550 is a tractor produced by Kubota. It is equipped with a 52.2 ci 0.9 L engine. The rated power output is 17 hp 12.7 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1224 to 1389 pounds.

Overview

	1988 - 1997 B SeriesCompact Utility tractor
1988 - 1997
B Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota B1550 Engine
Kubota 0.9L 3-cyl diesel
Fuel tank	4.8 gal 18.2 L
Engine details ...

Kubota B1550 Power
Engine (gross)	17 hp 12.7 kW
Gear PTO (claimed)	14 hp 10.4 kW
Hydro PTO (claimed)	12.5 hp 9.3 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	manual
	power optional
Dry disc brakes
Two-post ROPS.

Hydraulics
Type	open center
Pump flow	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	827 lbs 375 kg

Power Take-off (PTO)
Gear Rear PTO	transmission
Hydro Rear PTO	live
Rear PTO Type	540 (1.375)
Engine RPM	540@2517
	858@2517
Mid PTO	live *Mid PTO is linked with the rear PTO.
Mid PTO Type	2455 (Kubota 10 tooth)
Engine RPM	2455@2517
Front PTO	optional

Dimensions & Tires
Wheelbase	57.9 inches 147 cm
Weight	1224 to 1389 pounds
Front tire	5.00-10
2WD Rear tire	8-16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Mid-Mount Mowers B/L Series published in 1994, by Kubota*
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
B1550/B1750/B2150 published in 1989, by Kubota
B1550HST B1750HST (66417-62914) published in 2002
Product Catalog published in 1990, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 52.2 ci / 0.9 L Diesel

Manufacturer	Kubota
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	52.2 ci 0.9 L
Bore/Stroke	2.835x2.756 inches 72 x 70 mm
Power (gross)	17 hp 12.7 kW
Rated RPM	2600
Starter volts	12

Transmission

Transmission options
6-speed gear
hydrostatic

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Kubota B1550 Tires
2WD Standard tires (ag)	Front: 5.00-10. Rear: 8-16
4WD Standard tires (ag)	Front: 6-12. Rear: 8-16

Dimensions
Wheelbase	57.9 inches 147 cm
Length	101 inches 256 cm
Width	39 inches 99 cm
Height	73.7 inches 187 cm
Flange rear axle
2WD Front tread	28 inches 71 cm
4WD Front tread	31.3 inches 79 cm
Rear tread	31 to 35.8 inches 78 to 90 cm

Kubota B1550 Weight
2WD gear Shipping	1224 lbs 555 kg
4WD gear Shipping	1345 lbs 610 kg
2WD hydro Shipping	1257 lbs 570 kg
4WD hydro Shipping	1389 lbs 630 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Kubota B1640A loader
Kubota LA300 loader
Backhoe

Kubota BL4520B Backhoe
Backhoe type	Kubota BL4520B Backhoe
Transport height	59.4 inches 150 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	80.9 inches 205 cm
Reach from pivot	97 inches 246 cm
Loading height	59.7 inches 151 cm
Bucket Rotation	164°
Swing Arc	180°
Bucket force	2700 lbs 1224 kg
Dipperstick force	1340 lbs 607 kg

Kubota B4572 Backhoe
Backhoe type	Kubota B4572 Backhoe
Transport height	70.7 inches 179 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	73.9 inches 187 cm
Reach from pivot	98.1 inches 249 cm
Loading height	65 inches 165 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg

Kubota B4672 Backhoe
Backhoe type	Kubota B4672 Backhoe
Transport height	70.7 inches 179 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	73.9 inches 187 cm
Reach from pivot	98.1 inches 249 cm
Loading height	65 inches 165 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg

Photos

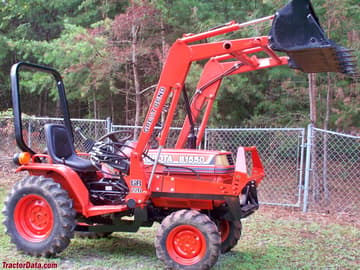

Kubota B1550 with Great Bend GB220 front-end loader.
