Kubota B1600

The Kubota B1600 is a tractor produced by Kubota. It is equipped with a 56.57 ci 0.9 L engine. The rated power output is 20 hp 14.9 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 1,410 lbs 639 kg.

Overview

	1979 - 1982 B00 SeriesSub-Compact Utility tractor
1979 - 1982
B00 Series
Sub-Compact Utility tractor

Production
Manufacturer	Kubota
Sub-Compact Utility tractor
Built in Japan

Kubota B1600 Engine
Kubota 0.9L 3-cyl diesel
Engine details ...

Kubota B1600 Transmission
12-speed unsynchronized gear
Transmission details ...

Kubota B1600 Power
Engine	20 hp 14.9 kW
PTO (claimed)	16 hp 11.9 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	manual
Open operator station. Two-post ROPS optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/860/1000 (1.375)

Dimensions & Tires
Wheelbase	53.2 inches 135 cm
Weight	1,410 lbs 639 kg
Front tire	5.00-12
Rear tire	8.3-22
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 56.57 ci / 0.9 L Diesel

Manufacturer	Kubota D950
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	56.57 ci 0.9 L
Power	20 hp 14.9 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — 12 forward and 4 reverse unsynchronized gear

Type	unsynchronized gear
Gears	12 forward and 4 reverse

Dimensions

Kubota B1600 Tires
Ag front	5.00-12
Ag rear	8.3-22

Dimensions
Wheelbase	53.2 inches 135 cm
Length	95.3 inches 242 cm
Width	42.9 inches 108 cm
Height (ROPS)	74.8 inches 189 cm
Weight	1,410 lbs 639 kg
Ground clearance	9.4 inches 23 cm
Front tread	30.3 inches 76 cm
Rear tread	33.5 to 38.2 inches 85 to 97 cm

Photos

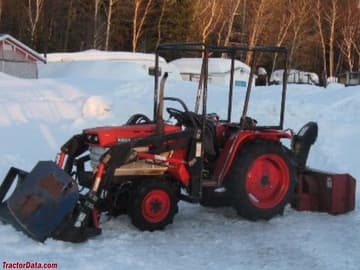

Kubota B1600
