Kubota GL33

The Kubota GL33 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 32.6 hp 24.3 kW. Transmission: 16 forward and reverse. Operating weight: 2844 lbs 1290 kg.

Overview

	1990 - 1992 GL SeriesCompact Utility tractor
1990 - 1992
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota GL33 Engine
Kubota 1.6L 3-cyl diesel
Fuel tank	9.25 gal 35.0 L
Engine details ...

Kubota GL33 Transmission
16-speed power shift
Transmission details ...

Kubota GL33 Power
Engine	32.6 hp 24.3 kW
PTO (claimed)	27.9 hp 20.8 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post folding ROPS.

Hydraulics
Pump flow	5.9 gpm 22.3 lpm

Tractor hitch
Rear Type	I
Rear lift	1996 lbs 905 kg

Power Take-off (PTO)
Rear PTO Type	565/800/980/1298 (1.375)

Dimensions & Tires
Wheelbase	68.9 inches 175 cm
Weight	2844 lbs 1290 kg
Front tire	8-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 100.5 ci / 1.6 L Diesel

Manufacturer	Kubota D1703
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.5 ci 1.6 L
Bore/Stroke	3.4x3.6 inches 86 x 91 mm
Power	32.6 hp 24.3 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

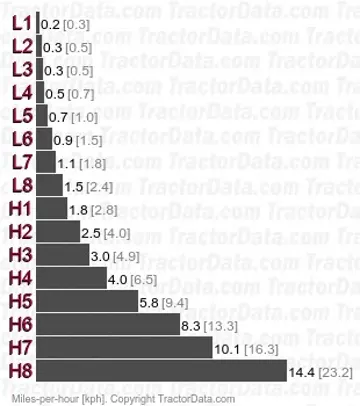

Transmission — 16 forward and reverse power shift

Type	power shift
Gears	16 forward and reverse
Eight power shift gears in two ranges with shuttle.

Dimensions

Kubota GL33 Tires
Standard tires (ag)	Front: 8-16. Rear: 13.6-24

Dimensions
Wheelbase	68.9 inches 175 cm
Width	57.3 inches 145 cm
Height (ROPS)	78.2 inches 198 cm
Weight	2844 lbs 1290 kg
Ground clearance	14.2 inches 36 cm
Front tread	44.5 inches 113 cm
Rear tread	43.7 to 62 inches 110 to 157 cm
