Kubota L1-275

The Kubota L1-275 is a tractor produced by Kubota. It is equipped with a 89.2 ci 1.5 L engine. The rated power output is 26.6 hp 19.8 kW. Transmission: 16 forward and reverse. Operating weight: 2304 to 2458 pounds.

Overview

	1988 - 1991 L1 SeriesCompact Utility tractor
1988 - 1991
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota L1-275 Engine
Kubota 1.5L 3-cyl diesel
Engine details ...

Kubota L1-275 Transmission

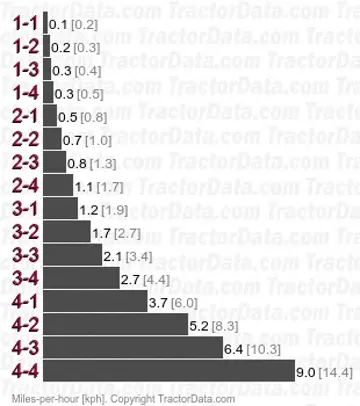

16-speed
Transmission details ...

Kubota L1-275 Power
Engine	26.6 hp 19.8 kW
PTO (claimed)	25.5 hp 19.0 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Hydraulics
Pump flow	6.2 gpm 23.5 lpm

Tractor hitch
Rear Type	I
Rear lift	1488 lbs 674 kg

Power Take-off (PTO)
Rear PTO Type	600/836/1038/1350 (1.375)

Dimensions & Tires
Wheelbase	62.6 inches 159 cm
Weight	2304 to 2458 pounds
Front tire	5.00-15
2WD Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 89.2 ci / 1.5 L Diesel

Manufacturer	Kubota D1462
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	89.2 ci 1.5 L
Bore/Stroke	3.4x3.2 inches 86 x 81 mm
Power	26.6 hp 19.8 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Dimensions

Kubota L1-275 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 12.4-24
4WD Standard tires (ag)	Front: 7-16. Rear: 12.4-24

Dimensions
Wheelbase	62.6 inches 159 cm
Length	117.9 inches 299 cm
Width	54.3 inches 137 cm
Height	55.7 inches 141 cm
2WD Weight	2304 lbs 1045 kg
4WD Weight	2458 lbs 1114 kg
2WD Ground clearance	14 inches 35 cm
4WD Ground clearance	12.4 inches 31 cm
2WD Front tread	41.3 to 57.1 inches 104 to 145 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	41.3 to 59.8 inches 104 to 151 cm

Photos

Kubota L1-275 tractor photo
