Kubota KL2750
The Kubota KL2750 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 26.6 hp 19.8 kW. Transmission: Glideshift. Operating weight: 2778 to 3219 pounds.
Engine Power
26.6 hp
19.8 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
Glideshift
Operating Weight
2778 to 3219 pounds
Kubota KL2750 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2010 - 2011
KL Kingwel 50 SeriesCompact Utility tractor |
|---|---|
2010 - 2011 | |
KL Kingwel 50 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL2750 Engine | |
|---|---|
Kubota 1.6L 3-cyl diesel | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
Kubota KL2750 Power | |
|---|---|
Engine | 26.6 hp
19.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 541@2700 |
760@2700 | |
945@2700 | |
1260@2700 | |
-945@2700 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 65.8 inches
167 cm |
Weight | 2778 to 3219 pounds |
Front tire | 6-14 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 100.5 ci / 1.6 L Diesel
Manufacturer | Kubota D1703 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.5 ci
1.6 L |
Bore/Stroke | 3.4x3.6 inches
86 x 91 mm |
Power | 26.6 hp
19.8 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |

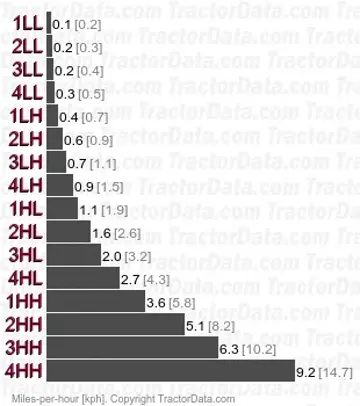

Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed power shift | |
30-speed |
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift. | |
 | |
Transmission — Glideshift
Transmission | Glideshift |
Type | power shift |
Gears | 24 forward and 16 reverse |
Twelve hydraulically-shift gears (eight in reverse) in two ranges. | |
Transmission — 30 forward and 20 reverse
Gears | 30 forward and 20 reverse |
Dimensions
Kubota KL2750 Tires | |
|---|---|
Standard tires (ag) | Front: 6-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
Wheelbase | 65.8 inches
167 cm |
Length | 121.7 inches
309 cm |
ROPS Width | 53.2 inches
135 cm |
Cab Width | 54.1 inches
137 cm |
Height (ROPS) | 78 inches
198 cm |
Height (cab) | 84.8 inches
215 cm |
ROPS Weight | 2778 lbs
1260 kg |
Cab Weight | 3219 lbs
1460 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 42.5 inches
107 cm |
Rear tread | 41.3/45.9 inches
104/116 cm |
