Kubota GL338

The Kubota GL338 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 32.6 hp 24.3 kW. Transmission: 16 forward and reverse. Operating weight: 2822 to 3230 pounds.

Overview

	1993 - 1995 GL SeriesCompact Utility tractor
1993 - 1995
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
GL338	ROPS
GL338Q	cab

Kubota GL338 Engine
Kubota 1.6L 3-cyl diesel
Fuel tank	9.25 gal 35.0 L
Engine details ...

Kubota GL338 Transmission
16-speed power shift
Transmission details ...

Kubota GL338 Power
Engine	32.6 hp 24.3 kW
PTO (claimed)	27.9 hp 20.8 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Pump flow	5.9 gpm 22.3 lpm

Tractor hitch
Rear Type	I
Rear lift	1995 lbs 904 kg

Power Take-off (PTO)
Rear PTO Type	565/800/980/1298 (1.375)

Dimensions & Tires
Wheelbase	68.9 inches 175 cm
Weight	2822 to 3230 pounds
Front tire	8-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 100.5 ci / 1.6 L Diesel

Manufacturer	Kubota D1703
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.5 ci 1.6 L
Bore/Stroke	3.4x3.6 inches 86 x 91 mm
Power	32.6 hp 24.3 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

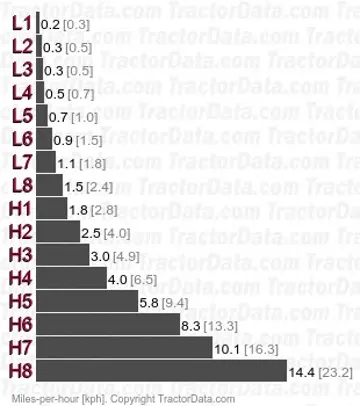

Transmission — 16 forward and reverse power shift

Type	power shift
Gears	16 forward and reverse

Dimensions

Kubota GL338 Tires
Standard tires (ag)	Front: 8-16. Rear: 13.6-24

Dimensions
Wheelbase	68.9 inches 175 cm
Length	125.2 inches 318 cm
Width	57.3 inches 145 cm
Height (ROPS)	78 inches 198 cm
Height (cab)	88.4 inches 224 cm
ROPS Weight	2822 lbs 1280 kg
Cab Weight	3230 lbs 1465 kg
Ground clearance	14.2 inches 36 cm
Front tread	44.5 inches 113 cm
Rear tread	43.7 to 62 inches 110 to 157 cm

Photos

Kubota GL338 tractor photo
