Kubota GL-530

The Kubota GL-530 is a tractor produced by Kubota. It is equipped with a 167.6 ci 2.7 L engine. The rated power output is 53 hp 39.5 kW. Transmission: 16 forward and reverse. Operating weight: 3836 to 4317 pounds.

Overview

	1995 - 1998 GL SeriesCompact Utility tractor
1995 - 1998
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota GL-530 Engine
Kubota 2.7L 5-cyl diesel
Fuel tank	13.2 gal 50.0 L
Engine details ...

Kubota GL-530 Transmission
16-speed
Transmission details ...

Kubota GL-530 Power
Engine	53 hp 39.5 kW

Mechanical
Four-wheel drive
Power steering
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	JIS1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	585@2600
	789@2600
	961@2600
	1263@2600
	-789@2600

Dimensions & Tires
Wheelbase	78.2 inches 198 cm
Weight	3836 to 4317 pounds
Front tire	8.3-20
Rear tire	12.4-32
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
GL (T0180-1921-7) published in 1995

Engine

Engine Detail — 167.6 ci / 2.7 L Diesel

Manufacturer	Kubota F2803
Fuel Type	Diesel
Configuration	5-cylinder, liquid-cooled
Displacement	167.6 ci 2.7 L
Bore/Stroke	3.4x3.6 inches 86 x 91 mm
Power	53 hp 39.5 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

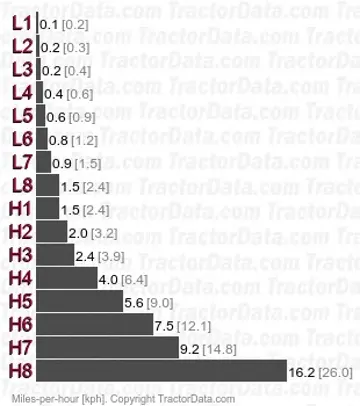

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Dimensions

Kubota GL-530 Tires
Standard tires (ag)	Front: 8.3-20. Rear: 12.4-32

Dimensions
Wheelbase	78.2 inches 198 cm
Length	142.9 inches 362 cm
Width	59.3 inches 150 cm
Height (ROPS)	87.8 inches 223 cm
Height (cab)	92.9 inches 235 cm
ROPS Weight	3836 lbs 1740 kg
Cab Weight	4317 lbs 1958 kg
Ground clearance	15.6 inches 39 cm
Front tread	48.2 inches 122 cm
Rear tread	46.3 to 61.8 inches 117 to 156 cm

Photos

Kubota GL-530 tractor photo
