Kubota GM90
The Kubota GM90 is a tractor produced by Kubota. It is equipped with a 202.5 ci 3.3 L engine. The rated power output is 87.8 hp 65.5 kW. Transmission: 24 forward and reverse. Operating weight: 6327 lbs 2869 kg.
Engine Power
87.8 hp
65.5 kW
Fuel & Capacities
27.7 gal
104.8 L
Transmission
24 forward and reverse
Operating Weight
6327 lbs
2869 kg
Kubota GM90 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 2007
GM SeriesUtility tractor |
|---|---|
1998 - 2007 | |
GM Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota GM90 Engine | |
|---|---|
Kubota 3.3L 4-cyl diesel | |
Fuel tank | 27.7 gal
104.8 L |
Engine details ...  | |
Kubota GM90 Transmission | |
|---|---|
24-speed | |
Transmission details ...  |
Kubota GM90 Power | |
|---|---|
Engine | 87.8 hp
65.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 587/827/1170 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.7 inches
235 cm |
Weight | 6327 lbs
2869 kg |
Front tire | 11.2-24 |
Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | electric |
Battery volts | 12 |
Engine
Engine Detail — 202.5 ci / 3.3 L Diesel
Manufacturer | Kubota V3300T |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 202.5 ci
3.3 L |
Bore/Stroke | 3.86x4.33 inches
98 x 110 mm |
Power | 87.8 hp
65.5 kW |
Rated RPM | 2600 |
Starter | negative |
Starter volts | 12 |
Transmission

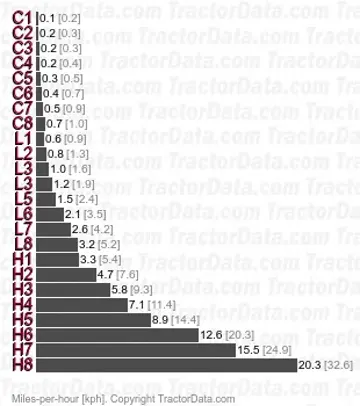

Transmission — 24 forward and reverse
Gears | 24 forward and reverse |
Eight gears in three ranges with shuttle. | |
 | |
Dimensions
Kubota GM90 Tires | |
|---|---|
Standard tires (ag) | Front: 11.2-24. Rear: 13.6-38 |
Dimensions | |
|---|---|
Wheelbase | 92.7 inches
235 cm |
Length | 156.9 inches
398 cm |
Width | 70.1 inches
178 cm |
Height (cab) | 101.4 inches
257 cm |
Weight | 6327 lbs
2869 kg |
Ground clearance | 19.1 inches
48 cm |
Front tread | 47.6 to 55.1 inches
120 to 139 cm |
Rear tread | 48 to 55.1 inches
121 to 139 cm |
Photos
Kubota GM90 tractor photo
