Kubota M7030

The Kubota M7030 is a tractor produced by Kubota. It is equipped with a 243.1 ci 4.0 L engine. The rated power output is 71 hp 52.9 kW. Transmission: 16 forward and 4 reverse. Operating weight: 4982 to 6040 pounds.

Overview

	1986 - 1998 M30 SeriesUtility tractor
1986 - 1998
M30 Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
M7030F	2WD
M7030DT	4WD
M7030LP	Low-profile
M7030SU	short wheelbase

Kubota M7030 Engine
Kubota 4.0L 4-cyl diesel
Engine details ...

Kubota M7030 Transmission
16-speed
Transmission details ...

Kubota M7030 Power
Engine	71 hp 52.9 kW
Drawbar (claimed)	58.5 hp 43.6 kW
PTO (claimed)	68 hp 50.7 kW
Drawbar (tested)	56.83 hp 42.4 kW
PTO (tested)	68.87 hp 51.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Differential mechanical wet disc brakes
Two-post ROPS.

Capacity
Fuel	16.9 gal 64.0 L
2WD Hydraulic system	13.2 gal 50.0 L
4WD Hydraulic system	16.2 gal 61.3 L

Hydraulics
Type	open center
2WD Capacity	13.2 gal 50.0 L
4WD Capacity	16.2 gal 61.3 L
Pressure	2630 psi 181.3 bar
Valves	1
Total flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	II
Rear lift (at ends)	4848 lbs 2199 kg
Rear lift (at 24"/610mm)	4475 lbs 2029 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2035

Dimensions & Tires
Wheelbase	87.4 inches (2WD) 221 cm
	89 inches (4WD) 226 cm
SU Wheelbase	83.4 inches 211 cm
Weight	4982 to 6040 pounds
Front tire	7.50-16
Rear tire	16.9-30 (2WD)
Full dimensions and tires ...

Electrical
Ground	145 (2WD)
	151 (4WD)
Battery volts	12

References
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
Product Catalog published in 1990, by Kubota
M30 Series - Utility/Agri/Low Profile published in 1986, by Kubota
M30 Series - Utility-Agri/Low Profile/Narrow/Mudder published in 1991, by Kubota
Low Profile Tractor M7030 4WD published in 1987, by Kubota
Utility Special Tractor M7030SU 2WD published in 1990, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 243.1 ci / 4.0 L Diesel

Manufacturer	Kubota V4000
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	243.1 ci 4.0 L
Bore/Stroke	4.13x4.53 inches 105 x 115 mm
Power	71 hp 52.9 kW
Air cleaner	dual dry element
Rated RPM	2400
Starter volts	12
Oil capacity	13.9 qts 13.2 L
Coolant capacity	14.4 qts 13.6 L

Transmission

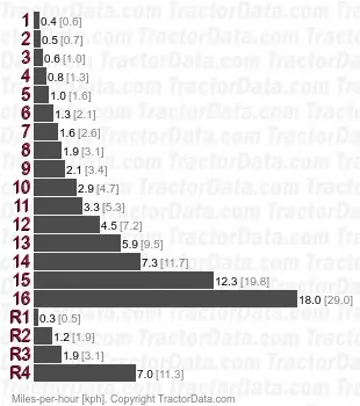

Transmission — 16 forward and 4 reverse

Gears	16 forward and 4 reverse
Clutch	dry plate
Oil capacity	52.8 qts (2WD) 50.0 L
	64.7 qts (4WD) 61.2 L

Dimensions

Kubota M7030 Tires
Standard tires (ag)	Front: 7.50-16. Rear: 16.9-30 (2WD)
	Front: 9.5-24. Rear: 16.9-30 (4WD)
	Front: 7.50-16. Rear: 16.9-24 (Low-profile 2WD)
	Front: 9.5-20. Rear: 16.9-24 (Low-profile 4WD)
Optional tires (ag)	Front: 7.50-18. Rear: 18.4-30 (2WD)
	Front: 11.2-24. Rear: 18.4-30 (4WD)

Dimensions
Wheelbase	87.4 inches (2WD) 221 cm
	89 inches (4WD) 226 cm
SU Wheelbase	83.4 inches 211 cm
2WD Length	145 inches 368 cm
4WD Length	151 inches 383 cm
SU Length	140.9 inches 357 cm
4WD Low-Profile Length	148.8 inches 377 cm
Width	76.4 inches 194 cm
	76.7 inches (Low-Profile) 194 cm
Ground clearance	14.4 inches (4WD) 36 cm
	20.1 inches (2WD) 51 cm
	16.7 inches (2WD Low-Profile) 42 cm
	12.4 inches (4WD Low-Profile) 31 cm
Front tread	56.7 to 80.3 inches 144 to 203 cm (2WD)
Front tread	57.9 to 61.8 inches 147 to 156 cm (4WD)
Rear tread	63.4 to 75.2 inches 161 to 191 cm

Kubota M7030 Weight
2WD Shipping	4982 lbs 2259 kg
4WD Shipping	6040 lbs 2739 kg
Ballasted	9405 lbs 4266 kg

Kubota M7030 Height
Hood	58.4 inches 148 cm
	55.1 inches (2WD Low-Profile) 139 cm
	56.5 inches (4WD Low-Profile) 143 cm
Exhaust	90.3 inches 229 cm

Tests

Nebraska Tractor Test 1597
Diesel 16-speed 4WD May 14 - June 2, 1986 Link: Nebraska Tractor Test 1597 file
PTO performance
Power at rated engine speed	68.87 hp 51.4 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	64.38 hp 48.0 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Drawbar performance
Max power	56.83 hp 42.4 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Max pull	7,424 lbs 3367 kg

Attachments

Attachment overview
Kubota M1250 loader
Kubota M1880A loader
