Kubota KL230
The Kubota KL230 is a tractor produced by Kubota. It is equipped with a 89.3 ci 1.5 L engine. The rated power output is 22.7 hp 16.9 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2535 to 2954 pounds.
Engine Power
22.7 hp
16.9 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
24 forward and 16 reverse
Operating Weight
2535 to 2954 pounds
Kubota KL230 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2007
KL SeriesCompact Utility tractor |
|---|---|
2006 - 2007 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
KL230 | standard |
KL230H | high-speed |
Kubota KL230 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota KL230 Power | |
|---|---|
Engine | 22.7 hp
16.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 542@2500 |
764@2500 | |
947@2500 | |
1263@2500 | |
-947@2500 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 63 inches
160 cm |
Weight | 2535 to 2954 pounds |
Front tire | 6-14 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Kubota D1463 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Bore/Stroke | 3.23x3.64 inches
82 x 92 mm |
Power | 22.7 hp
16.9 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |

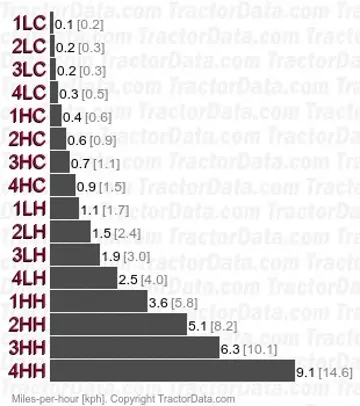

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges with additional creeper range and shuttle shift. | |
 | |
Transmission | |
Gears | 16 forward and reverse |
Eight gears in two ranges (creeper and high) with shuttle shift. | |
Gears | 24 forward and 16 reverse |
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin. | |
Dimensions
Kubota KL230 Tires | |
|---|---|
Standard tires (ag) | Front: 6-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 63 inches
160 cm |
ROPS Length | 116.7 inches
296 cm |
Cab Length | 118.7 inches
301 cm |
Width | 49 inches
124 cm |
Height (ROPS) | 78.4 inches
199 cm |
Height (cab) | 78.5 inches
199 cm |
ROPS Weight | 2535 lbs
1149 kg |
Cab Weight | 2954 lbs
1339 kg |
Ground clearance | 13.8 inches
35 cm |
Front tread | 37.4 inches
94 cm |
Rear tread | 39.8/44.5 inches
101/113 cm |
