Kubota KL250
The Kubota KL250 is a tractor produced by Kubota. It is equipped with a 89.3 ci 1.5 L engine. The rated power output is 24.7 hp 18.4 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2646 to 3042 pounds.
Engine Power
24.7 hp
18.4 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
24 forward and 16 reverse
Operating Weight
2646 to 3042 pounds
Kubota KL250 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2007
KL SeriesCompact Utility tractor |
|---|---|
2006 - 2007 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
KL250 | standard |
KL250H | high-speed |
Kubota KL250 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota KL250 Power | |
|---|---|
Engine | 24.7 hp
18.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2600 |
762@2600 | |
944@2600 | |
1258@2600 | |
-944@2600 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 62.6 inches
159 cm |
Cab Wheelbase | 64.6 inches
164 cm |
Weight | 2646 to 3042 pounds |
Front tire | 7-14 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Kubota D1463 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Bore/Stroke | 3.23x3.64 inches
82 x 92 mm |
Power | 24.7 hp
18.4 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |

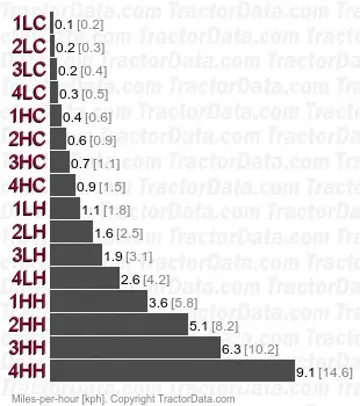

Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges with additional creeper range and shuttle shift. | |
 | |
Transmission | |
Gears | 16 forward and reverse |
Eight gears in two ranges (creeper and high) with shuttle shift. | |
Gears | 24 forward and 16 reverse |
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin. | |
Dimensions
Kubota KL250 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 11.2-24 |
Dimensions | |
|---|---|
ROPS Wheelbase | 62.6 inches
159 cm |
Cab Wheelbase | 64.6 inches
164 cm |
ROPS Length | 118.3 inches
300 cm |
Cab Length | 120.5 inches
306 cm |
Width | 52 inches
132 cm |
Height (ROPS) | 78.2 inches
198 cm |
Height (cab) | 78.5 inches
199 cm |
ROPS Weight | 2646 lbs
1200 kg |
Cab Weight | 3042 lbs
1379 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 39.4 inches
100 cm |
Rear tread | 41.3/45.9 inches
104/116 cm |
