Kubota KL265
The Kubota KL265 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2646 to 3097 pounds.
Engine Power
25.6 hp
19.1 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
24 forward and 16 reverse
Operating Weight
2646 to 3097 pounds
Kubota KL265 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2008 - 2009
KL SeriesCompact Utility tractor |
|---|---|
2008 - 2009 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
KL265 | standard |
KL265H | high-speed |
Kubota KL265 Engine | |
|---|---|
Kubota 1.6L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota KL265 Power | |
|---|---|
Engine | 25.6 hp
19.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2600 |
762@2600 | |
944@2600 | |
1258@2600 | |
-944@2600 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 62.6 inches
159 cm |
Cab Wheelbase | 64.6 inches
164 cm |
Weight | 2646 to 3097 pounds |
Front tire | 7-14 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator Manual KL (T01850-1920-1) |
Engine
Engine Detail — 100.5 ci / 1.6 L Diesel
Manufacturer | Kubota D1703 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.5 ci
1.6 L |
Bore/Stroke | 3.43x3.64 inches
87 x 92 mm |
Power | 25.6 hp
19.1 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |

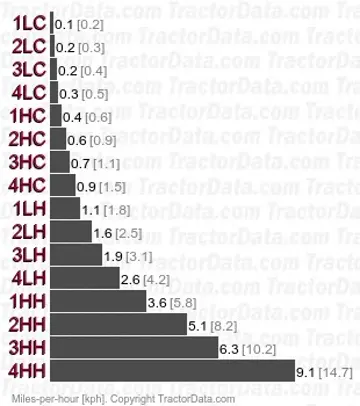

Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges with additional creeper range and shuttle shift. | |
 | |
Transmission | |
Gears | 16 forward and reverse |
Eight gears in two ranges (creeper and high) with shuttle shift. | |
Gears | 24 forward and 16 reverse |
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin. | |
Dimensions
Kubota KL265 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 11.2-24 |
Dimensions | |
|---|---|
ROPS Wheelbase | 62.6 inches
159 cm |
Cab Wheelbase | 64.6 inches
164 cm |
ROPS Length | 118.3 inches
300 cm |
Cab Length | 120.5 inches
306 cm |
Width | 52 inches
132 cm |
Height (ROPS) | 78.2 inches
198 cm |
Height (cab) | 80.5 inches
204 cm |
ROPS Weight | 2646 lbs
1200 kg |
Cab Weight | 3097 lbs
1404 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 39.4 inches
100 cm |
Rear tread | 41.3/45.9 inches
104/116 cm |
