Kubota KL330
The Kubota KL330 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 32.6 hp 24.3 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2932 to 3318 pounds.
Engine Power
32.6 hp
24.3 kW
Fuel & Capacities
10.6 gal
40.1 L
Transmission
24 forward and 16 reverse
Operating Weight
2932 to 3318 pounds
Kubota KL330 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2007
KL SeriesCompact Utility tractor |
|---|---|
2006 - 2007 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL330 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
Kubota KL330 Power | |
|---|---|
Engine | 32.6 hp
24.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 561@2800 |
791@2800 | |
980@2800 | |
1307@2800 | |
-980@2800 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 68.7 inches
174 cm |
Weight | 2932 to 3318 pounds |
Front tire | 8-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.27x3.64 inches
83 x 92 mm |
Power | 32.6 hp
24.3 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |

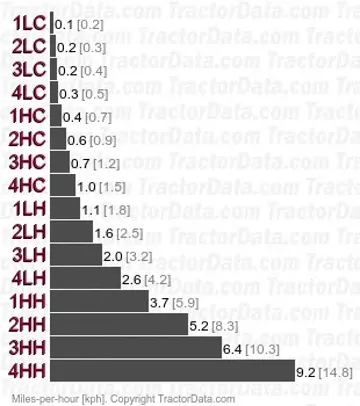

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in two ranges with additional creeper range and shuttle shift. | |
 | |
Transmission | |
Gears | 16 forward and reverse |
Eight gears in two ranges (creeper and high) with shuttle shift. | |
Gears | 24 forward and 16 reverse |
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin. | |
Dimensions
Kubota KL330 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 13.6-24 |
Dimensions | |
|---|---|
Wheelbase | 68.7 inches
174 cm |
Length | 125.2 inches
318 cm |
Width | 57.5 inches
146 cm |
Height (ROPS) | 78 inches
198 cm |
Height (cab) | 78.2 inches
198 cm |
ROPS Weight | 2932 lbs
1329 kg |
Cab Weight | 3318 lbs
1505 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 43.7 to 62 inches
110 to 157 cm |
