Kubota KL500 Hi-Speed
The Kubota KL500 Hi-Speed is a tractor produced by Kubota. It is equipped with a 148.5 ci 2.4 L engine. The rated power output is 49.4 hp 36.8 kW. Transmission: 30 forward and 20 reverse. Operating weight: 3583 to 3968 pounds.
Engine Power
49.4 hp
36.8 kW
Fuel & Capacities
11.9 gal
45.0 L
Transmission
30 forward and 20 reverse
Operating Weight
3583 to 3968 pounds
Kubota KL500 Hi-Speed Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2007
KL SeriesCompact Utility tractor |
|---|---|
2006 - 2007 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL500 Engine | |
|---|---|
Kubota 2.4L 4-cyl diesel | |
Fuel tank | 11.9 gal
45.0 L |
Engine details ...  | |
Kubota KL500 Power | |
|---|---|
Engine | 49.4 hp
36.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 547@2700 |
772@2700 | |
956@2700 | |
1274@2700 | |
-956@2700 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.4 inches
194 cm |
Weight | 3583 to 3968 pounds |
Front tire | 8.3-20 |
Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 148.5 ci / 2.4 L Diesel
Manufacturer | Kubota V2403 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148.5 ci
2.4 L |
Bore/Stroke | 3.43x4.03 inches
87 x 102 mm |
Power | 49.4 hp
36.8 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
20-speed | |
30-speed |

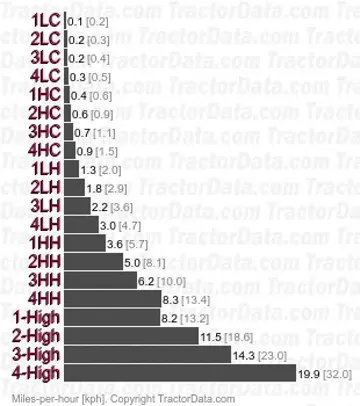

Transmission — 20 forward and reverse
Gears | 20 forward and reverse |
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed). | |
 | |
Transmission | |
Gears | 30 forward and 20 reverse |
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available. | |
Dimensions
Kubota KL500 Tires | |
|---|---|
Standard tires (ag) | Front: 8.3-20. Rear: 13.6-28 |
Dimensions | |
|---|---|
Wheelbase | 76.4 inches
194 cm |
Length | 139.2 inches
353 cm |
Width | 60.4 inches
153 cm |
Height (ROPS) | 93.3 inches
236 cm |
Height (cab) | 86.6 inches
219 cm |
ROPS Weight | 3583 lbs
1625 kg |
Cab Weight | 3968 lbs
1799 kg |
Ground clearance | 17.3 inches
43 cm |
Front tread | 47.8 inches
121 cm |
Rear tread | 44.9 to 56.3 inches
114 to 143 cm |
