Kubota KL505 Hi-Speed

The Kubota KL505 Hi-Speed is a tractor produced by Kubota. It is equipped with a 148.5 ci 2.4 L engine. The rated power output is 49.4 hp 36.8 kW. Transmission: 30 forward and 20 reverse. Operating weight: 3583 to 4012 pounds.

Overview

	2008 - 2009 KL SeriesCompact Utility tractor
2008 - 2009
KL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota KL505 Engine
Kubota 2.4L 4-cyl diesel
Fuel tank	12.7 gal 48.1 L
Engine details ...

Kubota KL505 Transmission
30-speed
Transmission details ...

Kubota KL505 Power
Engine	49.4 hp 36.8 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	547@2700
	772@2700
	956@2700
	1274@2700
	-956@2700

Dimensions & Tires
Wheelbase	76.4 inches 194 cm
Weight	3583 to 4012 pounds
Front tire	8.3-20
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator Manual KL (T01850-1920-1)

Engine

Engine Detail — 148.5 ci / 2.4 L Diesel

Manufacturer	Kubota V2403
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	148.5 ci 2.4 L
Bore/Stroke	3.43x4.03 inches 87 x 102 mm
Power	49.4 hp 36.8 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

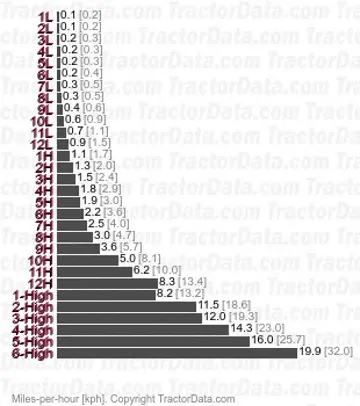

Transmission — 30 forward and 20 reverse

Gears	30 forward and 20 reverse
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.

Dimensions

Kubota KL505 Tires
Standard tires (ag)	Front: 8.3-20. Rear: 13.6-28

Dimensions
Wheelbase	76.4 inches 194 cm
Length	139.2 inches 353 cm
Width	60.4 inches 153 cm
Height (ROPS)	93.3 inches 236 cm
Height (cab)	88.6 inches 225 cm
ROPS Weight	3583 lbs 1625 kg
Cab Weight	4012 lbs 1819 kg
Ground clearance	17.3 inches 43 cm
Front tread	47.8 inches 121 cm
Rear tread	44.9 to 56.3 inches 114 to 143 cm
