Kubota L1-235

The Kubota L1-235 is a tractor produced by Kubota. It is equipped with a 89.2 ci 1.5 L engine. The rated power output is 22.7 hp 16.9 kW. Transmission: 16 forward and reverse. Operating weight: 2105 to 2227 pounds.

Overview

	1986 - 1988 L1 SeriesCompact Utility tractor
1986 - 1988
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L1-235DT	4WD

Kubota L1-235 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Kubota L1-235 Transmission
16-speed shuttle
Transmission details ...

Kubota L1-235 Power
Engine	22.7 hp 16.9 kW

Mechanical
Two- or four-wheel drive
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/770/940/1250

Dimensions & Tires
Wheelbase	61 inches 154 cm
Weight	2105 to 2227 pounds
Front tire	4.00-15
2WD Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 89.2 ci / 1.5 L Diesel

Manufacturer	Kubota D1462
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	89.2 ci 1.5 L
Bore/Stroke	3.4x3.2 inches 86 x 81 mm
Power	22.7 hp 16.9 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

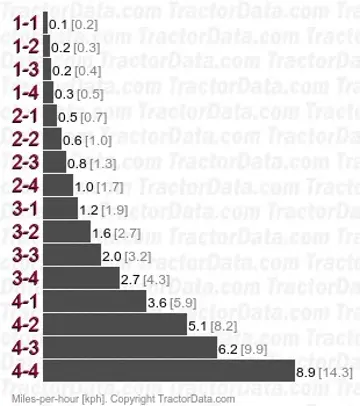

Transmission — 16 forward and reverse shuttle

Type	shuttle
Gears	16 forward and reverse
Clutch	dry disc
Four gears in four ranges with shuttle shift.

Dimensions

Kubota L1-235 Tires
2WD Standard tires (ag)	Front: 4.00-15. Rear: 9.5-24
4WD Standard tires (ag)	Front: 6-14. Rear: 9.5-24

Dimensions
Wheelbase	61 inches 154 cm
Length	115.75 inches 294 cm
Width	49.6 inches 125 cm
Height	55.3 inches 140 cm
2WD Weight	2105 lbs 954 kg
4WD Weight	2227 lbs 1010 kg
2WD Ground clearance	13.6 inches 34 cm
4WD Ground clearance	10.8 inches 27 cm
2WD Front tread	37.8 inches 96 cm
4WD Front tread	37 inches 93 cm
Rear tread	39/43.7 inches 99/110 cm

Photos

Kubota L1-235

Kubota L1-235

Kubota L1-235

Kubota L1-235

Kubota L1-235 operator station and controls.
