Kubota L1-26

The Kubota L1-26 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2381 to 2535 pounds.

Overview

	1983 - 1985 L1 SeriesCompact Utility tractor
1983 - 1985
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L1-26DT	4WD

Kubota L1-26 Engine
Kubota 1.5L 4-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Kubota L1-26 Transmission
16-speed shuttle
Transmission details ...

Kubota L1-26 Power
Engine	25.6 hp 19.1 kW

Mechanical
Two- or four-wheel drive
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/770/940/1250 (1.375)

Dimensions & Tires
Wheelbase	66.3 inches 168 cm
Weight	2381 to 2535 pounds
Front tire	5.00-15
2WD Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Instruction Manual L1 (31351-1921-6)

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota V1512
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Power	25.6 hp 19.1 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

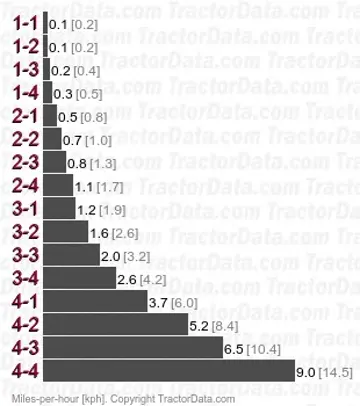

Transmission — 16 forward and reverse shuttle

Type	shuttle
Gears	16 forward and reverse
Clutch	dry disc
Four gears in four ranges with shuttle shift.

Dimensions

Kubota L1-26 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 12.4-24
4WD Standard tires (ag)	Front: 7-16. Rear: 12.4-24

Dimensions
Wheelbase	66.3 inches 168 cm
Length	121.7 inches 309 cm
Width	54.3 inches 137 cm
Height	77.8 inches 197 cm
2WD Weight	2381 lbs 1080 kg
4WD Weight	2535 lbs 1149 kg
2WD Ground clearance	14 inches 35 cm
4WD Ground clearance	12.4 inches 31 cm
2WD Front tread	41.3 to 57.1 inches 104 to 145 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	41.3 to 59.8 inches 104 to 151 cm

Photos

Kubota L1-26 tractor photo
