Kubota L2601

The Kubota L2601 is a tractor produced by Kubota. It is equipped with a 79.3 ci 1.3 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and 4 reverse. Operating weight: 2238 lbs 1015 kg.

Overview

	1976 - 1979 L01 SeriesCompact Utility tractor
1976 - 1979
L01 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor
Built in Japan

Variants
L2601	2WD
L2601DT	4WD

Kubota L2601 Engine
Kubota 1.3L 3-cyl diesel
Fuel tank	9.25 gal 35.0 L
Engine details ...

Kubota L2601 Transmission
16-speed gear
Transmission details ...

Kubota L2601 Power
Engine	25.6 hp 19.1 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Tractor hitch
Rear Type	JIS1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	622@2800
	809@2800
	1161@2800
	1400@2800

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	2238 lbs 1015 kg
Front tire	5.00-15
Rear tire	11.2/10-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
L2601 published by Kubota

Engine

Engine Detail — 79.3 ci / 1.3 L Diesel

Manufacturer	Kubota D1301
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	79.3 ci 1.3 L
Bore/Stroke	3.23x3.23 inches 82 x 82 mm
Power	25.6 hp 19.1 kW
Rated RPM	2800
Starter	electric
Starter volts	12

Transmission

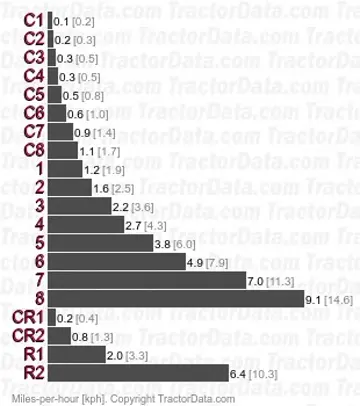

Transmission — 16 forward and 4 reverse gear

Type	gear
Gears	16 forward and 4 reverse

Dimensions

Kubota L2601 Tires
Standard tires (ag)	Front: 5.00-15. Rear: 11.2/10-24

Dimensions
Wheelbase	65 inches 165 cm
Length	112.2 inches 284 cm
Width	51.2 inches 130 cm
Height (steering wheel)	55.3 inches 140 cm
Height (exhaust)	74.8 inches 189 cm
Weight	2238 lbs 1015 kg
Ground clearance	13.4 inches 34 cm

Photos

Kubota L2601

Kubota L2601

Kubota L2601

Kubota L2601

Kubota L2601 operator station and controls.
