Kubota L2900

The Kubota L2900 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (net): 29.7 hp / 22.1 kW; Diesel (gross): 32.1 hp / 23.9 kW. Transmission: Glide Shift (GST). Operating weight: 476 lbs 215 kg.

Overview

	1994 - 1999 Grand L SeriesCompact Utility tractor Grand L Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota L2900 Engine
Kubota 1.5L 3-cyl diesel
Engine details ...

Kubota L2900 Power
Engine (gross)	32.1 hp 23.9 kW
Engine (net)	29.7 hp 22.1 kW
PTO (claimed)	25 hp 18.6 kW
Plows	2 *12-inch
	1 *16-inch

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	9.2 gal 34.8 L
Hydraulic system	10.3 gal 39.0 L

Hydraulics
Type	open center
Capacity	10.3 gal 39.0 L
Pressure	2490 psi 171.7 bar
Pump flow	7.0 gpm 26.5 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	2,870 lbs 1301 kg
Rear lift (at 24"/610mm)	2,200 lbs 997 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2670
Mid PTO	independent
Mid PTO Type	2000
Engine RPM	2000@2623

Dimensions & Tires
2WD Wheelbase	65.9 inches 167 cm
4WD Wheelbase	65.7 inches 166 cm
Weight	2560 to 2710 pounds
Front tire	5.00-15
Rear tire	11.2-24 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	490
Battery volts	12

References
Backhoes published in 1994, by Kubota
Mid-Mount Mowers B/L Series published in 1994, by Kubota*
Front Loaders B, L and M-Series published in 1994, by Kubota*
L2900/L3300/L3600/L4200 published in 1996, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.3x3.6 inches 84 x 91 mm
Power (net)	29.7 hp 22.1 kW
Power (gross)	32.1 hp 23.9 kW
Fuel system	indirect injection
Rated RPM	2700
Torque	70.9 lb-ft 96.1 Nm
Starter volts	12
Coolant capacity	7.4 qts 7.0 L
Oil capacity	3.7 qts*The Operator Manual states 3.5L capacity. Owners report actual capacity is 6L. 3.5 L
Oil change	100 h

Transmission

Transmission options
8-speed synchronized shuttle
8-speed power shuttle

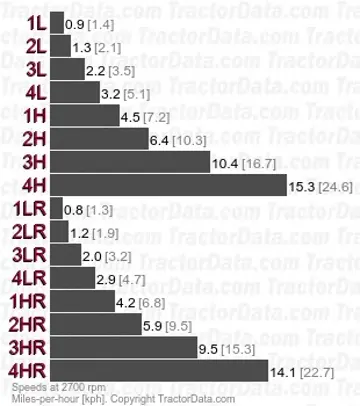

Transmission — FST

Transmission	FST
Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc
Oil capacity	41.2 qts 39.0 L
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges.
With 11.2-24 rear tires.

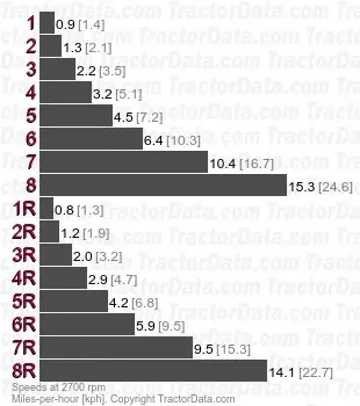

Transmission — Glide Shift (GST)

Transmission	Glide Shift (GST)
Type	power shuttle
Gears	8 forward and reverse
Clutch	dry disc
Oil capacity	41.2 qts 39.0 L
Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears.
With 11.2-24 rear tires.

Dimensions

Kubota L2900 Tires
Standard tires (ag)	Front: 5.00-15. Rear: 11.2-24 (2WD)
	Front: 7.2-16. Rear: 11.2-24 (4WD)

Dimensions
2WD Wheelbase	65.9 inches 167 cm
4WD Wheelbase	65.7 inches 166 cm
Length	111 inches 281 cm
Width	52.2 inches 132 cm
Height (steering wheel)	59.6 inches 151 cm
Height (ROPS)	82.3 inches 209 cm
Ground clearance	12.8 inches 32 cm
Front tread	37.8/41.7/45.7/49.6 inches 96/105/116/125 cm (2WD)
Front tread	43.5 inches 110 cm (4WD)
Rear tread	40.7/44.1/48/51.4/55.3 inches 103/112/121/130/140 cm

Kubota L2900 Weight
2WD ROPS	2560 lbs 1161 kg
4WD ROPS	2710 lbs 1229 kg
Max Drawbar	1100 lbs 498 kg

Attachments

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Kubota LA480 loader
Kubota LA481 loader
Backhoe
Maximum recommended trailer load for the L2900 is 3,300 pounds. Kubota recommended mowers up to 72-inches in width, 60-inch tillers, or a 52-inch box blade.

72" Mower deck
Type	mid-mount Kubota RC72-29
	3-blade with hydraulic lift
Cutting width	72 inches 182 cm
Weight	476 lbs 215 kg
Overall width	88.6 inches 225 cm
Cut height	1.5 to 4.0 inch 3 to 10 cm

Kubota BL4690 Backhoe
Backhoe type	Kubota BL4690 Backhoe
Transport height	76.5 inches 194 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg

Photos

Kubota L2900 with LA480 front-end loader.

Kubota L2900 with LA480 front-end loader.
