Kubota L3410

The Kubota L3410 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The listed engine power is Diesel (net): 33.3 hp / 24.8 kW; Diesel (gross): 35.1 hp / 26.2 kW. Transmission: Glide Shift (GST). Operating weight: 476 lbs 215 kg.

Engine Power
Diesel (net): 33.3 hp / 24.8 kW; Diesel (gross): 35.1 hp / 26.2 kW
Fuel & Capacities
9.2 gal 34.8 L
Transmission
Glide Shift (GST)
Operating Weight
476 lbs 215 kg

Overview

Kubota L3410 tractor photo
1998 - 2002 Grand L10 SeriesCompact Utility tractor Grand L10 Series Compact Utility tractor
Production
Manufacturer
Kubota
Compact Utility tractor
Variants
L3410DT
4WD Gear
L3410GST
4WD Glide Shift
L3410HST
4WD Hydro
Kubota L3410 Engine
Kubota 1.6L 3-cyl diesel
Engine details ...
Kubota L3410 Power
Engine (gross)
35.1 hp 26.2 kW
Engine (net)
33.3 hp 24.8 kW
Gear PTO (claimed)
28.5 hp 21.3 kW
Hydro PTO (claimed)
27 hp 20.1 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Two-post ROPS.
Capacity
Fuel
9.2 gal 34.8 L
Hydraulic system
10.3 gal 39.0 L
Hydraulics
Type
open center
Capacity
10.3 gal 39.0 L
Pump flow
7.0 gpm 26.5 lpm
Tractor hitch
Rear Type
I
Control
position control and optional draft control
Rear lift (at 24"/610mm)
2,200 lbs 997 kg
Power Take-off (PTO)
Rear PTO
live
Rear PTO Type
540 (1.375)
Mid PTO
semi-independent
Mid PTO Type
2000
Dimensions & Tires
Wheelbase
66 inches 167 cm
Weight
2765 to 2800 pounds
Front tire
7.20-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
40
Battery CCA
520
Battery volts
12
References
L3410 references literature
1999 Products published by Kubota
L3010/L3410/L3710/L4310 published in 1999, by Kubota
L3010/L3410/L3710/L4310 published in 1999, by Kubota
L3010/L3410/L3710/L4310/L4610 published in 2000, by Kubota

Engine

Engine Detail — 100.5 ci / 1.6 L Diesel

Manufacturer
Kubota E-TVCS
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
100.5 ci 1.6 L
Bore/Stroke
3.425x3.638 inches 87 x 92 mm
Power (net)
33.3 hp 24.8 kW
Power (gross)
35.1 hp 26.2 kW
Rated RPM
2700
Starter volts
12
Coolant capacity
7.4 qts 7.0 L

Transmission

Transmission options
8-speed mechanical shuttle
hydrostatic
8-speed automatic fully synchronized
16-speed creeper

Transmission — FST

Transmission
FST
Type
mechanical shuttle
Gears
8 forward and reverse
Clutch
dry disc
Four synchronized gears in two ranges. Synchronized shuttle shifting.

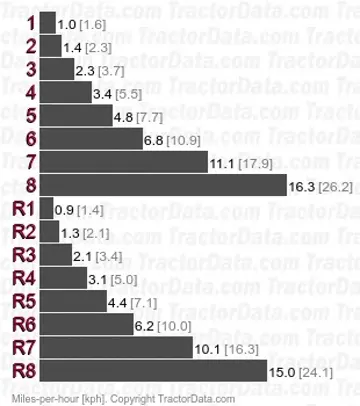

L3410 FST mechanical shuttle speeds

Transmission — infinite forward and reverse (3-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (3-range)
L3410 hydrostatic speeds

Transmission — Glide Shift (GST)

Transmission
Glide Shift (GST)
Type
automatic fully synchronized
Gears
8 forward and reverse
Clutch
dry disc
The Glide Shift allows clutchless automatic shifting between gears.
L3410 Glide Shift (GST) automatic fully synchronized speeds

Transmission — 16 forward and reverse creeper

Type
creeper
Gears
16 forward and reverse
Optional creeper range available for the FST or GST transmission.

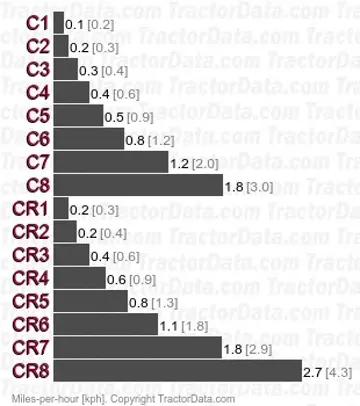

L3410 creeper speeds

Dimensions

Kubota L3410 Tires
Ag front
7.20-16
Ag rear
12.4-24
Dimensions
Wheelbase
66 inches 167 cm
Length
110.8 inches 281 cm
Width
56.7 inches 144 cm
Height (ROPS)
84.3 inches 214 cm
L3410DT Weight
2,765 lbs 1254 kg
L3410HST Weight
2,800 lbs 1270 kg
Ground clearance
13.8 inches 35 cm
Front tread
43.5 inches 110 cm
Rear tread
44.1/48.0/51.4/55.3 inches 112/121/130/140 cm

Attachments

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
Advertised attachments for the L3410 included 60 or 72-inch rear-mount finish mowers (RCR60-CA, RCR72-CA) and rotary cutters (L360CA, L372CA), tillers (FL1271C/RS, FL1521C, L60CA), post-hole diggers (BL80A), box scrapers (L7554), and 60-inch front-mount rotary brooms (L2062A).
72" Mower deck
Type
mid-mount Kubota RC72-29A
3-blade with hydraulic lift
Cutting width
72 inches 182 cm
Weight
476 lbs 215 kg
Overall width
88.6 inches 225 cm
Cut height
1.5 to 3.5 inch 3 to 8 cm
Kubota BL4690 Backhoe
Backhoe type
Kubota BL4690 Backhoe
Bucket width
10 inches 25 cm
12 inches 30 cm
16 inches 40 cm
24 inches 60 cm
Digging depth
90.2 inches 229 cm
Reach from pivot
116.5 inches 295 cm
Loading height
75.5 inches 191 cm
Bucket Rotation
180°
Swing Arc
180°
Bucket force
2,950 lbs 1338 kg
Dipperstick force
1,740 lbs 789 kg
