Kubota KL27

The Kubota KL27 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 26.7 hp 19.9 kW. Transmission: 24 forward and 16 reverse. Operating weight: 2734 to 3120 pounds.

Overview

	1999 - 2005 KL SeriesCompact Utility tractor
1999 - 2005
KL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota KL27 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	9.25 gal 35.0 L
Engine details ...

Kubota KL27 Power
Engine	26.7 hp 19.9 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	564@2600
	795@2600
	985@2600
	1313@2600
	-985@2600

Dimensions & Tires
Wheelbase	65.8 inches 167 cm
Weight	2734 to 3120 pounds
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.27x3.64 inches 83 x 92 mm
Power	26.7 hp 19.9 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed
24-speed

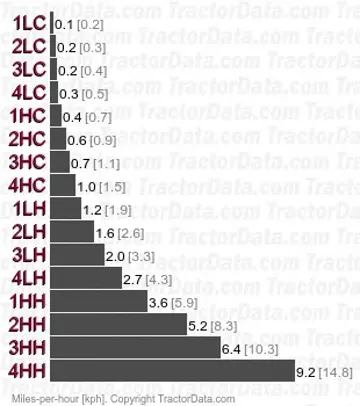

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.
Transmission
Gears	24 forward and 16 reverse
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.

Dimensions

Kubota KL27 Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	65.8 inches 167 cm
Length	121.3 inches 308 cm
Width	53.2 inches 135 cm
Height (ROPS)	78 inches 198 cm
Height (cab)	78.5 inches 199 cm
ROPS Weight	2734 lbs 1240 kg
Cab Weight	3120 lbs 1415 kg
Ground clearance	13.6 inches 34 cm
Front tread	42.5 inches 107 cm
Rear tread	41.3/45.9 inches 104/116 cm
