Kubota L3430

The Kubota L3430 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 33.6 hp 25.1 kW. Transmission: Glide Shift. Operating weight: 463 lbs 210 kg.

Overview

	2003 - 2007 L30 SeriesCompact Utility tractor
2003 - 2007
L30 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L3430DT	4WD 8 speed
L3430GST	4WD 12 speed
L3430HST	hydro
L3430HSTC	hydro cab

Kubota L3430 Engine
Kubota 1.6L 3-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Kubota L3430 Power
Engine (gross)	35.1 hp 26.2 kW
Engine (net)	33.6 hp 25.1 kW
GST PTO (claimed)	28.5 hp 21.3 kW
Hydro PTO (claimed)	27 hp 20.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Grand Cab optional.

Hydraulics
Type	open center
Valves	3 OptOptional
Pump flow	8.3 gpm 31.4 lpm
Total flow	13.2 gpm 50.0 lpm
Steering flow	4.9 gpm 18.5 lpm

Tractor hitch
Rear Type	I
Control	position control with optional draft control
Rear lift (at 24"/610mm)	2650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO	independent OptOptional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	71.1 inches 180 cm
Weight	3305 lbs 1499 kg
Front tire	7.2-16
Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	40
Cab Charging amps	60
Battery volts	12

References
Grand L 30 Series published in 2004, by Kubota*
*Publication contains known errors.

Engine

Engine Detail — 100.5 ci / 1.6 L Diesel

Manufacturer	Kubota D1703
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.5 ci 1.6 L
Bore/Stroke	3.43x3.64 inches 87 x 92 mm
Power (net)	33.6 hp 25.1 kW
Power (gross)	35.1 hp 26.2 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Rated RPM	2700
Starter volts	12

Transmission

Transmission options
hydrostatic
8-speed fully synchronized
12-speed power shift

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

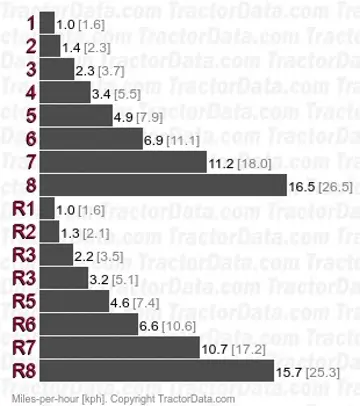

Transmission — FST

Transmission	FST
Type	fully synchronized
Gears	8 forward and reverse
Clutch	dry disc
Synchronized transmission with mechanical shuttle.

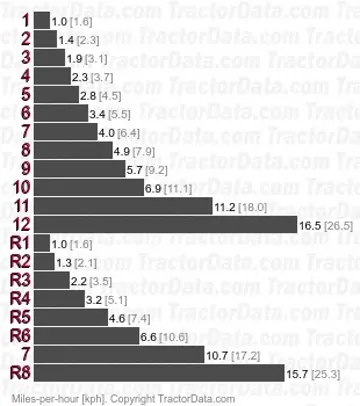

Transmission — Glide Shift

Transmission	Glide Shift
Type	power shift
Gears	12 forward and 8 reverse

Dimensions

Kubota L3430 Tires
Standard tires (ag)	Front: 7.2-16. Rear: 12.4-24

Dimensions
Wheelbase	71.1 inches 180 cm
Length	114.8 inches 291 cm
Width	59.8 inches 151 cm
Height (ROPS)	90.7 inches 230 cm
Height (cab)	86.4 inches 219 cm
Weight	3305 lbs 1499 kg
Ground clearance	14 inches 35 cm
Front tread	45.5 inches 115 cm
Rear tread	47.2/51.2/54.5/58.3 inches 119/130/138/148 cm

Attachments

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Kubota LA513 loader
Kubota LA723 loader
Backhoe

72" Mower deck
Type	mid-mount Kubota RC72-38
	3-blade
Cutting width	72 inches 182 cm
Weight	463 lbs 210 kg
Cut height	1.5 to 4.5 inch 3 to 11 cm

Kubota BL4690B Backhoe
Backhoe type	Kubota BL4690B Backhoe
Transport height	76.8 inches 195 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg

Kubota BH90 Backhoe
Backhoe type	Kubota BH90 Backhoe
Transport height	98.9 inches 251 cm
Digging depth	108.9 inches 276 cm
Reach from pivot	146.5 inches 372 cm
Loading height	95.3 inches 242 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3871 lbs 1755 kg
Dipperstick force	2593 lbs 1176 kg

Photos

Kubota L3430
