Kubota L3600

The Kubota L3600 is a tractor produced by Kubota. It is equipped with a 113.3 ci 1.9 L engine. The listed engine power is Diesel (net): 35.7 hp / 26.6 kW; Diesel (gross): 38.5 hp / 28.7 kW. Transmission: Glide Shift (GST). Operating weight: 476 lbs 215 kg.

Overview

	1994 - 1999 Grand L SeriesCompact Utility tractor Grand L Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota L3600 Engine
Kubota 1.9L 4-cyl diesel
Engine details ...

Kubota L3600 Power
Engine (gross)	38.5 hp 28.7 kW
Engine (net)	35.7 hp 26.6 kW
PTO (claimed)	31 hp 23.1 kW
Plows	2 (14-inch)

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	9.2 gal 34.8 L
Hydraulic system	10.3 gal 39.0 L

Hydraulics
Type	open center
Capacity	10.3 gal 39.0 L
Pressure	2490 psi 171.7 bar
Pump flow	7.8 gpm 29.5 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	2,870 lbs 1301 kg
Rear lift (at 24"/610mm)	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2447
Mid PTO	independent
Mid PTO Type	2000
Engine RPM	2000@2404

Dimensions & Tires
2WD Wheelbase	71.3 inches 181 cm
4WD Wheelbase	71.1 inches 180 cm
Weight	2800 to 2955 pounds
Front tire	6.00-16
Rear tire	13.6-24 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	447
Battery volts	12

References
Backhoes published in 1994, by Kubota
Mid-Mount Mowers B/L Series published in 1994, by Kubota*
Front Loaders B, L and M-Series published in 1994, by Kubota*
Americans on Kubota published in 2000
L2900/L3300/L3600/L4200 published in 1996, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 113.3 ci / 1.9 L Diesel

Manufacturer	Kubota V1903
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	113.3 ci 1.9 L
Bore/Stroke	3.1x3.6 inches 79 x 91 mm
Power (net)	35.7 hp 26.6 kW
Power (gross)	38.5 hp 28.7 kW
Fuel system	indirect injection
Rated RPM	2600
Torque	88.7 lb-ft 120.3 Nm
Starter volts	12
Coolant capacity	7.9 qts 7.5 L
Oil capacity	6.3 qts 6.0 L
Oil change	100 h

Transmission

Transmission options
8-speed synchronized shuttle
8-speed power shuttle

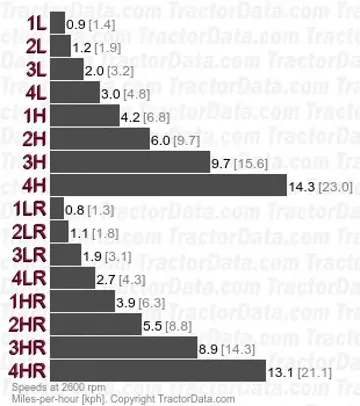

Transmission — FST

Transmission	FST
Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc
Oil capacity	41.2 qts 39.0 L
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges.
With 16.6-24 rear tires.

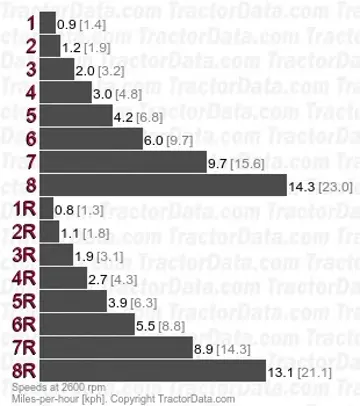

Transmission — Glide Shift (GST)

Transmission	Glide Shift (GST)
Type	power shuttle
Gears	8 forward and reverse
Clutch	dry disc
Oil capacity	41.2 qts 39.0 L
Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears.
With 16.6-24 rear tires.

Dimensions

Kubota L3600 Tires
Standard tires (ag)	Front: 6.00-16. Rear: 13.6-24 (2WD)
	Front: 8.3-16. Rear: 13.6-24 (4WD)

Dimensions
2WD Wheelbase	71.3 inches 181 cm
4WD Wheelbase	71.1 inches 180 cm
Length	118.1 inches 299 cm
Width	56.1 inches 142 cm
Height (steering wheel)	60 inches 152 cm
Height (ROPS)	83.5 inches 212 cm
Ground clearance	13.2 inches 33 cm
Front tread	45.1/49/53/56.9 inches 114/124/134/144 cm (2WD)
Front tread	45.5 inches 115 cm (4WD)
Rear tread	42.5/46.4/47.2/51.2/57.1/60.8 inches 107/117/119/130/145/154 cm

Kubota L3600 Weight
2WD ROPS	2800 lbs 1270 kg
4WD ROPS	2955 lbs 1340 kg
Max Drawbar	1430 lbs 648 kg

Attachments

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Kubota LA680 loader
Kubota LA681 loader
Backhoe
The maximum trailer load for the L3600 is 5,500 pounds. Mid and rear mount mowers up to 72 inches were recommended, and tillers up to 60 inches in width.

72" Mower deck
Type	mid-mount Kubota RC72-36
	3-blade with hydraulic lift
Cutting width	72 inches 182 cm
Weight	476 lbs 215 kg
Overall width	88.6 inches 225 cm
Cut height	1.5 to 4.0 inch 3 to 10 cm

Kubota BL4690 Backhoe
Backhoe type	Kubota BL4690 Backhoe
Transport height	76.5 inches 194 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg
