Kubota L4850

The Kubota L4850 is a tractor produced by Kubota. It is equipped with a 152.5 ci 2.5 L engine. The listed engine power is Diesel (gross): 53 hp / 39.5 kW; Diesel (listed): 1.87 hp / 1.4 kW. Transmission: 8 forward and reverse. Operating weight: 4080 lbs 1850 kg.

Overview

	1991 - 1997 Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota L4850 Engine
Kubota 2.5L 5-cyl diesel
Engine details ...

Kubota L4850 Power
Engine (gross)	53 hp 39.5 kW
PTO (claimed)	42 hp 31.3 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post fixed ROPS.

Capacity
Fuel	15.9 gal 60.2 L
Hydraulic system	11.4 gal 43.1 L
Front hubs	2.9 qts (each) 2.7 L
Front diff.	6.6 qts 6.2 L

Hydraulics
Type	open center
Capacity	11.4 gal 43.1 L
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	3300 lbs 1496 kg
Rear lift (at 24"/610mm)	3200 lbs 1451 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750 (1.375)
Engine RPM	540@2243
	750@2391

Dimensions & Tires
Wheelbase	76.4 inches 194 cm
Weight	4080 lbs 1850 kg
Front tire	8.3-20
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	110
	160 OptOptional

References
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
Product Catalog published in 1990, by Kubota
Diesel Tractor L4350/L4850/L5450 published in 1990, by Kubota
Diesel Tractor L4350/L4850/L5450 published in 1994, by Kubota
Operator's Manual L4350-L4850-L5450 (32550-1971-4)
*Publication contains known errors.

Engine

Engine Detail — 152.5 ci / 2.5 L Diesel

Manufacturer	Kubota F2503-DI
Fuel Type	Diesel
Configuration	5-cylinder, liquid-cooled
Displacement	152.5 ci 2.5 L
Bore/Stroke	3.3x3.6 inches 84 x 91 mm
Power (gross)	53 hp 39.5 kW
Rated RPM	2600
Starter volts	12
Starter power	1.87 hp 1.4 kW
Oil capacity	8.5 qts 8.0 L
Coolant capacity	8.5 qts 8.0 L

Transmission

Transmission options
8-speed mechanical shuttle
8-speed hydraulic shuttle

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse
Clutch	dry disc
Oil capacity	45.5 qts 43.1 L
Four gears in two ranges with reverser lever.
With 14.9-28 R1 rear tires.

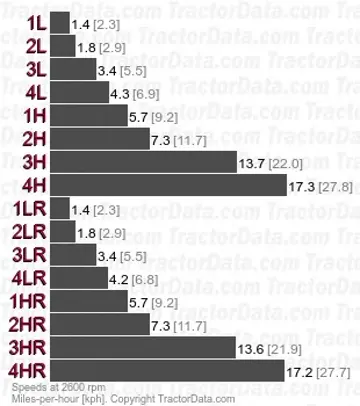

Transmission — 8 forward and reverse hydraulic shuttle

Type	hydraulic shuttle
Gears	8 forward and reverse
Clutch	wet disc
Oil capacity	45.5 qts 43.1 L
Four gears in two ranges with reverser lever.
With 14.9-28 R1 rear tires.

Dimensions

Kubota L4850 Tires
Ag front	8.3-20
Ag rear	13.6-28

Dimensions
Wheelbase	76.4 inches 194 cm
Length	134.1 inches 340 cm
Width	67.3 inches 170 cm
Height (steering wheel)	61.6 inches 156 cm
Weight	4080 lbs 1850 kg
Max Drawbar	2200 lbs 997 kg
Ground clearance	13.4 inches 34 cm
Front tread	54 inches 137 cm
Rear tread	52 to 72 inches 132 to 182 cm

Attachments

Attachment overview
Kubota LA950 loader
Kubota LA950A loader
Backhoe
The Kubota L4850 was recommended with three 14-inch plows or two 16-inch. Rotary cutters up to 84-inches were recommended.

Kubota L4540A Backhoe
Backhoe type	Kubota L4540A Backhoe
Transport height	103.2 inches 262 cm
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
	36 inches 91 cm
Digging depth	135.5 inches 344 cm
Reach from pivot	167.4 inches 425 cm
Loading height	98.6 inches 250 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3450 lbs 1564 kg
Dipperstick force	2740 lbs 1242 kg

Kubota L5412 Backhoe
Backhoe type	Kubota L5412 Backhoe
Transport height	110 inches 279 cm
Bucket width	12 inches 30 cm
	16 inches 40 cm
	18 inches 45 cm
	24 inches 60 cm
Digging depth	132 inches 335 cm
Reach from pivot	165 inches 419 cm
Loading height	108 inches 274 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	6630 lbs 3007 kg
Dipperstick force	3510 lbs 1592 kg
