Kubota M100A
The Kubota M100A is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The listed engine power is Diesel (listed): 98.6 hp / 73.5 kW. Transmission: 24 forward and reverse. Operating weight: 7915 lbs 3590 kg.
Engine Power
Diesel (listed): 98.6 hp / 73.5 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
24 forward and reverse
Operating Weight
7915 lbs
3590 kg
Overview
 | 2009 - 2013
Grandom A SeriesUtility tractor
Grandom A Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M100A Engine | |
|---|---|
Kubota 3.8L 4-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M100A Power | |
|---|---|
Engine | 98.6 hp
73.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 8598 lbs
3900 kg |
11023 lbs*With optional lift cylinder.
5000 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2405 |
1000@2529 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Weight | 7915 lbs
3590 kg |
Front tire | 11.2-24 |
Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Kubota V3800-TI |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 98.6 hp
73.5 kW |
Fuel system | direct injection |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed power shift | |
24-speed creeper |

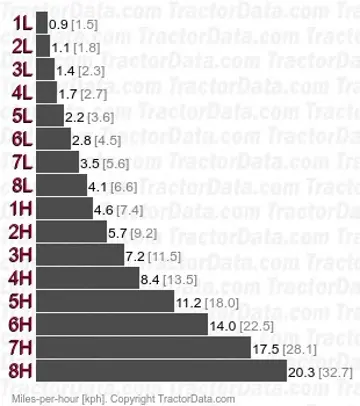

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M100A Tires | |
|---|---|
Standard tires (ag) | Front: 11.2-24. Rear: 13.6-38 |
Dimensions | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Length | 168.1 inches
426 cm |
Width | 73 inches
185 cm |
Height | 104 inches
264 cm |
Weight | 7915 lbs
3590 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 52.4 to 59.8 inches
133 to 151 cm |
Rear tread | 55.1 to 79.1 inches
139 to 200 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota M100A based on its 98.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota M100A.
Estimated Continuous Field Runtime: 9.8 hrs
Approximately 9.8 hours of continuous field operation at ~75% rated power on a full tank (50.2 gal / 190 L).
Estimated 75% Load Fuel Burn~5.1 gal/hr (19.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota M100A Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota M100A.
Converted Equivalents:
Horsepower (HP)98.6 hp
Kilowatts (kW)73.5 kW
Metric Horsepower (PS / CV)100 PS
