Kubota M125
The Kubota M125 is a tractor produced by Kubota. It is equipped with a 355.9 ci 5.8 L engine. The rated power output is 123.2 hp 91.9 kW. Transmission: 24 forward and reverse. Operating weight: 8973 lbs 4070 kg.
Engine Power
123.2 hp
91.9 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
24 forward and reverse
Operating Weight
8973 lbs
4070 kg
Kubota M125 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2004
Grandom SeriesUtility tractor |
|---|---|
2002 - 2004 | |
Grandom Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M125 Engine | |
|---|---|
Kubota 5.8L 5-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
Engine details ...  | |
Kubota M125 Power | |
|---|---|
Engine | 123.2 hp
91.9 kW |
PTO (claimed) | 111.8 hp
83.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 8588 lbs
3895 kg |
11016 lbs*With optional second lift cylinder.
4996 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Weight | 8973 lbs
4070 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 355.9 ci / 5.8 L Diesel
Manufacturer | Kubota F5802-T |
Configuration | turbocharged diesel, 5-cylinder, liquid-cooled |
Displacement | 355.9 ci
5.8 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 123.2 hp
91.9 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed synchromesh | |
16-speed power shift | |
24-speed creeper |

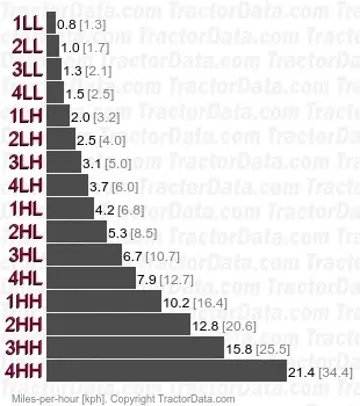

Transmission — 16 forward and reverse synchromesh
Type | synchromesh |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges with additional high/low shift. | |
 | |

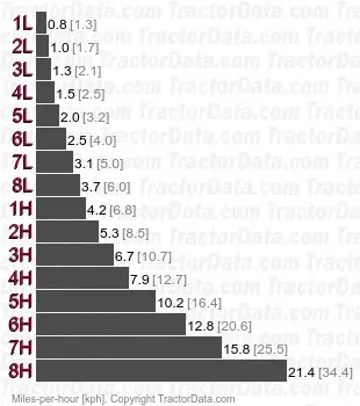

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
1C:2C:3C:4C:5C:6C:7C:8C;:0.15:0.19:0.23:0.27:0.35:0.45:0.56:0.67 | |
Dimensions
Kubota M125 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Length | 172.8 inches
438 cm |
Width | 82.7 inches
210 cm |
Height | 107.3 inches
272 cm |
Weight | 8973 lbs
4070 kg |
Ground clearance | 20.5 inches
52 cm |
Front tread | 64.6/68.5 inches
164/173 cm |
Rear tread | 60.2 to 79.1 inches
152 to 200 cm |
Photos
Kubota M125 tractor photo
