Kubota M100
The Kubota M100 is a tractor produced by Kubota. It is equipped with a 284.7 ci 4.7 L engine. The rated power output is 98.7 hp 73.6 kW. Transmission: 24 forward and reverse. Operating weight: 8025 lbs 3640 kg.
Engine Power
98.7 hp
73.6 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
24 forward and reverse
Operating Weight
8025 lbs
3640 kg
Kubota M100 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2004
Grandom SeriesUtility tractor |
|---|---|
2002 - 2004 | |
Grandom Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M100 Engine | |
|---|---|
Kubota 4.7L 4-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
Engine details ...  | |
Kubota M100 Power | |
|---|---|
Engine | 98.7 hp
73.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Rear lift | 6182 lbs
2804 kg |
8588 lbs*With optional lift cylinder.
3895 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2035 |
1000@2211 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.1 inches
244 cm |
Weight | 8025 lbs
3640 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 284.7 ci / 4.7 L Diesel
Manufacturer | Kubota V4702 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 284.7 ci
4.7 L |
Bore/Stroke | 4.29x4.92 inches
109 x 125 mm |
Power | 98.7 hp
73.6 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Torque | 277 lb-ft
375.6 Nm |
Torque RPM | 1300 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed synchromesh | |
16-speed power shift | |
24-speed creeper |

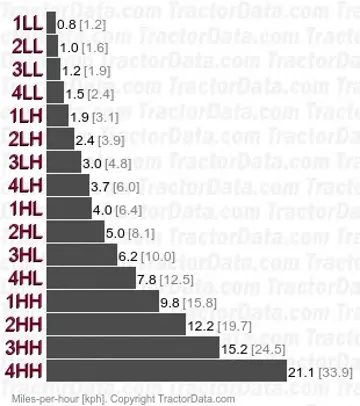

Transmission — 16 forward and reverse synchromesh
Type | synchromesh |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges with additional high/low shift. | |
 | |

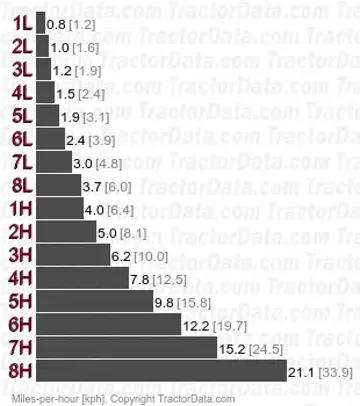

Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in two ranges with shuttle. | |
 | |
Transmission — 24 forward and reverse creeper
Type | creeper |
Gears | 24 forward and reverse |
1C:2C:3C:4C:5C:6C:7C:8C;:0.13:0.17:0.22:0.27:0.34:0.43:0.53:0.68 | |
Dimensions
Kubota M100 Tires | |
|---|---|
Standard tires (ag) | Front: 11.2-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
Wheelbase | 96.1 inches
244 cm |
Length | 159.5 inches
405 cm |
Width | 78 inches
198 cm |
Height | 104.3 inches
264 cm |
Weight | 8025 lbs
3640 kg |
Ground clearance | 17.9 inches
45 cm |
Front tread | 52.4 to 59.8 inches
133 to 151 cm |
Rear tread | 55.1 to 79.1 inches
139 to 200 cm |
