Kubota M125A

The Kubota M125A is a tractor produced by Kubota. It is equipped with a 373.7 ci 6.1 L engine. The rated power output is 123.2 hp 91.9 kW. Transmission: 16 forward and reverse. Operating weight: 9502 lbs 4310 kg.

Overview

	2009 - 2013 Grandom A SeriesUtility tractor
2009 - 2013
Grandom A Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota M125A Engine
Kubota 6.1L 4-cyl diesel
Fuel tank	50.2 gal 190.0 L
Engine details ...

Kubota M125A Transmission
16-speed power shift
Transmission details ...

Kubota M125A Power
Engine	123.2 hp 91.9 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Tractor hitch
Rear Type	II
Control	position and electronic draft control
Rear lift	12787 lbs 5800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@1994
	1000@2050

Dimensions & Tires
Wheelbase	105.9 inches 268 cm
Weight	9502 lbs 4310 kg
Front tire	14.9R24
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 373.7 ci / 6.1 L Diesel

Manufacturer	Kubota V6108-TI
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	373.7 ci 6.1 L
Bore/Stroke	4.65x5.51 inches 118 x 140 mm
Power	123.2 hp 91.9 kW
Fuel system	direct injection
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and reverse power shift

Type	power shift
Gears	16 forward and reverse

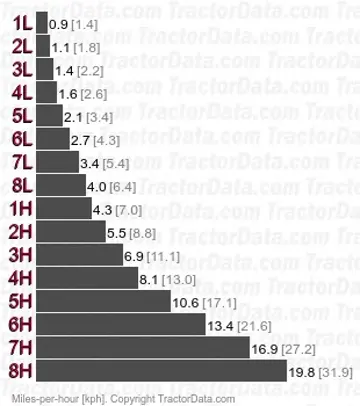

Eight power-shift gears in two ranges with shuttle.

Dimensions

Kubota M125A Tires
Standard tires (ag)	Front: 14.9R24. Rear: 18.4R38

Dimensions
Wheelbase	105.9 inches 268 cm
Length	172.8 inches 438 cm
Width	83.7 inches 212 cm
Height	107.5 inches 273 cm
Weight	9502 lbs 4310 kg
Ground clearance	17.7 inches 44 cm
Front tread	64.6/68.5 inches 164/173 cm
Rear tread	62.2 to 81.1 inches 157 to 205 cm
