Kubota M5270
The Kubota M5270 is a tractor produced by Kubota. It is equipped with a 182.3 ci 3.0 L engine. The rated power output is 52.5 hp 39.1 kW. Transmission: 16 forward and 4 reverse. Operating weight: 5049 to 5688 pounds.
Engine Power
52.5 hp
39.1 kW
Fuel & Capacities
18.5 gal
70.0 L
Transmission
16 forward and 4 reverse
Operating Weight
5049 to 5688 pounds
Kubota M5270 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1984 - 1988
M70 SeriesUtility tractor |
|---|---|
1984 - 1988 | |
M70 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M5270 Engine | |
|---|---|
Kubota 3.0L 3-cyl diesel | |
Fuel tank | 18.5 gal
70.0 L |
Engine details ...  | |
Kubota M5270 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Kubota M5270 Power | |
|---|---|
Engine | 52.5 hp
39.1 kW |
PTO (claimed) | 49.5 hp
36.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive |
Hydraulics | |
|---|---|
Pump flow | 9.25 gpm
35.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | JISII/I |
Rear lift | 4189 lbs
1900 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2194 |
1000@2530 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 82.7 inches
210 cm |
4WD Wheelbase | 83.3 inches
211 cm |
Weight | 5049 to 5688 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 12.4-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual M70 (636830-9971-8) |
Engine
Engine Detail — 182.3 ci / 3.0 L Diesel
Manufacturer | Kubota D3000 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 182.3 ci
3.0 L |
Bore/Stroke | 4.13x4.53 inches
105 x 115 mm |
Power | 52.5 hp
39.1 kW |
Rated RPM | 2400 |
Torque | 142 lb-ft
192.6 Nm |
Torque RPM | 1300 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 10.4 qts
9.8 L |
Coolant capacity | 12.3 qts
11.6 L |
Transmission

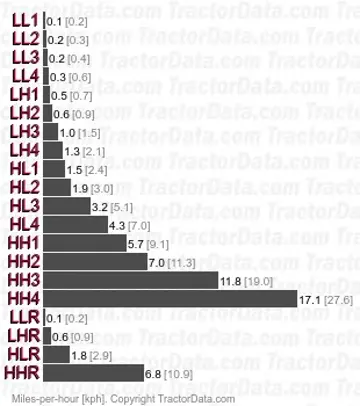

Transmission — 16 forward and 4 reverse
Gears | 16 forward and 4 reverse |
 | |
Dimensions
Kubota M5270 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 12.4-32 |
4WD Standard tires (ag) | Front: 8.3-24. Rear: 12.4-32 |
Dimensions | |
|---|---|
2WD Wheelbase | 82.7 inches
210 cm |
4WD Wheelbase | 83.3 inches
211 cm |
Length | 143.5 inches
364 cm |
2WD Width | 64.8 inches
164 cm |
4WD Width | 71.3 inches
181 cm |
2WD Weight | 5049 lbs
2290 kg |
4WD Weight | 5688 lbs
2580 kg |
Ground clearance | 14.4 inches
36 cm |
2WD Front tread | 48 to 71.7 inches
121 to 182 cm |
4WD Front tread | 55.9/59.8 inches
141/151 cm |
4WD Front tread | 52.4 to 63.8 inches
133 to 162 cm |
Rear tread | 48 to 75.6 inches
121 to 192 cm |
Kubota M5270 Height | |
|---|---|
2WD ROPS | 95.1 inches
241 cm |
4WD ROPS | 95.3 inches
242 cm |
Exhaust | 89.4 inches
227 cm |
