Kubota M6040

The Kubota M6040 is a tractor produced by Kubota. It is equipped with a 203 ci 3.3 L engine. The listed engine power is Diesel (net): 62 hp / 46.2 kW; Diesel (net): 63.5 hp / 47.4 kW. Transmission: Hydraulic-Shuttle. Operating weight: 1975 lbs 895 kg.

Overview

	2007 - 2013 Utility tractor

Production
Manufacturer	Kubota
Utility tractor
Original price was $23,623 in 2011

Variants
M6040HDN	narrow chassis
M6040F	2WD ROPS sync-shuttle
M6040FC	2WD cab sync-shuttle
M6040DT	4WD ROPS sync-shuttle
M6040HD	4WD ROPS hyd-shuttle
M6040DTC	4WD cab sync-shuttle
M6040HDC	4WD cab hyd-shuttle

Kubota M6040 Engine
Kubota 3.3L 4-cyl diesel
Engine details ...

Kubota M6040 Power
Engine (net)	63.5 hp 47.4 kW
PTO (claimed)	56 hp (late) 41.8 kW
	55 hp (early) 41.0 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post foldable ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioning

Capacity
ROPS Fuel	18.5 gal 70.0 L
Cab Fuel	23.8 gal 90.1 L
Hydraulic system	15 gal 56.8 L
Front axle	8.5 qts 8.0 L

Hydraulics
Type	open center
Capacity	15 gal 56.8 L
Pressure	2770 psi 191.0 bar
Valves	1 to 3
Pump flow	11 gpm 41.6 lpm
Total flow	17 gpm 64.3 lpm
Steering flow	6.1 gpm 23.1 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at ends)	4200 lbs 1905 kg
Rear lift (at 24"/610mm)	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2295

Dimensions & Tires
Wheelbase	80.7 inches (4WD ROPS) 204 cm
	82.1 inches (2WD ROPS) 208 cm
	83.1 inches (4WD cab) 211 cm
	84.4 inches (2WD cab) 214 cm
Weight	4650 to 5445 pounds
Front tire	7.50-16
Rear tire	16.9-28 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
ROPS Charging amps	45
Cab Charging amps	60
Battery CCA	900
Battery volts	12

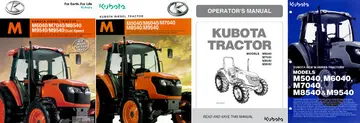

References
M6040/M7040/M8540/M9540 published in 2018, by Kubota
M5040/M6040/M7040/M8540/M9540 published in 2005, by Kubota
M6040/M7040/M8540/M9540 (3C043-9971-2) published in 2006
New Product Guide M-Series Tractors published in 2005, by Kubota

Engine

Engine Detail — 203 ci / 3.3 L Diesel

Manufacturer	Kubota V3307-DI
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	203 ci 3.3 L
Bore/Stroke	3.70x4.70 inches 94 x 119 mm
Emissions	Tier II
Power (net)	62 hp 46.2 kW
Air cleaner	dual element dry
Rated RPM	2600
Starter volts	12

Engine Detail — 203 ci / 3.3 L Diesel

Manufacturer	Kubota V3307-DI-T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	203 ci 3.3 L
Emissions	Tier III
Emission control	EGR
Power (net)	63.5 hp 47.4 kW
Rated RPM	2600
Starter volts	12
Oil capacity	12 qts 11.4 L
Coolant capacity	6.6 qts 6.2 L

Transmission

Transmission options
8-speed partially synchronized
8-speed power shuttle

Transmission — Synchro-Shuttle

Transmission	Synchro-Shuttle
Type	partially synchronized
Gears	8 forward and reverse
Clutch	dry plate
Oil capacity	42.4 qts 40.1 L
Four gears with high and low ranges. Gears and forward-reverse shuttle shifting are synchronized.

Transmission — Hydraulic-Shuttle

Transmission	Hydraulic-Shuttle
Type	power shuttle
Gears	8 forward and reverse
Clutch	wet discs
Oil capacity	42.4 qts 40.1 L
Four gears with high and low ranges. Clutchless power shuttle shifting between forward and reverse. Gears (1-4) are synchronized.

Dimensions

Kubota M6040 Tires
Standard tires (ag)	Front: 7.50-16. Rear: 16.9-28 (2WD)
	Front: 9.5-24. Rear: 16.9-28 (4WD)
Optional tires (ag)	Front: 6.50-16. Rear: 14.9-28 (2WD)
	Front: 9.5L-15. Rear: 14.9-28 (2WD)
	Front: 9.5L-15. Rear: 16.9-28 (2WD)
	Front: 9.5-24. Rear: 14.9-28 (4WD)
Lawn/turf front	29x12.5-15 (2WD)
	27x9.5-15 (2WD)
	305R343
Lawn/turf rear	21.5L-16.1 (2WD)
	16.9-24 (2WD)
	570-648
Industrial front	12.5/80-18 (4WD)
Industrial rear	16.9-24 (4WD)

Dimensions
Wheelbase	80.7 inches (4WD ROPS) 204 cm
	82.1 inches (2WD ROPS) 208 cm
	83.1 inches (4WD cab) 211 cm
	84.4 inches (2WD cab) 214 cm
Length	142.7 inches (2WD cab) 362 cm
	140.4 inches (2WD ROPS) 356 cm
	138.6 inches (4WD cab) 352 cm
	135.6 inches (4WD ROPS) 344 cm
Width	73 inches 185 cm
Height (ROPS)	96.9 inches 246 cm
Height (cab)	100.6 inches 255 cm
Ground clearance	16.5 inches 41 cm
2WD Front tread	55.9 to 71.7 inches 141 to 182 cm
4WD Front tread	55.9 to 59.8 inches 141 to 151 cm
Rear tread	52 to 67.7 inches 132 to 171 cm

Kubota M6040 Weight
2WD ROPS	4650 lbs 2109 kg
4WD ROPS	4785 lbs 2170 kg
2WD cab	5315 lbs 2410 kg
4WD cab	5445 lbs 2469 kg

Attachments

Attachment overview
Kubota LA1153 Height Position loader
Kubota LA1153 Power Position loader
Backhoe

Kubota M4011 Backhoe
Backhoe type	Kubota M4011 Backhoe
Weight	1975 lbs 895 kg
Transport height	108.5 inches 275 cm
Digging depth	133.2 inches 338 cm
Reach from pivot	173 inches 439 cm
Loading height	98 inches 248 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	6167 lbs 2797 kg
Dipperstick force	4160 lbs 1886 kg

Photos

Kubota M6040 with LA1153 front-end loader and Woods backhoe.
