Kubota L5060
The Kubota L5060 is a tractor produced by Kubota. It is equipped with a 148.5 ci 2.4 L engine. The rated power output is 50 hp 37.3 kW. Transmission: Kubota Glide Shift. Operating weight: 3979 lbs 1804 kg.
Engine Power
50 hp
37.3 kW
Fuel & Capacities
13.5 gal
51.1 L
Transmission
Kubota Glide Shift
Operating Weight
3979 lbs
1804 kg
Kubota L5060 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2013 -
L60 SeriesCompact Utility tractor |
|---|---|
2013 - | |
L60 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota L5060 Engine | |
|---|---|
Kubota 2.4L 4-cyl diesel | |
Fuel tank | 13.5 gal
51.1 L |
Engine details ...  | |
Kubota L5060 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Kubota L5060 Power | |
|---|---|
Engine (gross) | 52 hp
38.8 kW |
Engine (net) | 50 hp
37.3 kW |
PTO (claimed) | 44 hp
32.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post foldable ROPS | |
Hydraulics | |
|---|---|
Pump flow | 9.8 gpm
37.1 lpm |
Total flow | 14.7 gpm
55.6 lpm |
Steering flow | 4.9 gpm
18.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control, draft control optional |
Rear lift (at 24"/610mm) | 2976 lbs
1349 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 75.4 inches
191 cm |
Weight | 3979 lbs
1804 kg |
Front tire | 9.5-16 |
Rear tire | 14.9-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery volts | 12 |
Engine
Engine Detail — 148.5 ci / 2.4 L Diesel
Manufacturer | Kubota |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 148.5 ci
2.4 L |
Bore/Stroke | 3.4x4.0 inches
86 x 102 mm |
Emissions | Tier IV |
Emission control | exhaust gas recirculation (EGR) |
Power (net) | 50 hp
37.3 kW |
Power (gross) | 52 hp
38.8 kW |
Fuel system | direct injection |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission

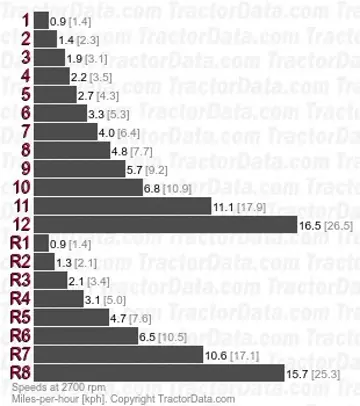

Transmission — Kubota Glide Shift
Transmission | Kubota Glide Shift |
Gears | 12 forward and 8 reverse |
Clutch | hydraulic dry disc |
 | |
Dimensions
Kubota L5060 Tires | |
|---|---|
Ag front | 9.5-16 |
Ag rear | 14.9-26 |
Dimensions | |
|---|---|
Wheelbase | 75.4 inches
191 cm |
Length | 126.4 inches
321 cm |
Width | 67.3 inches (min)
170 cm |
Height (ROPS) | 98 inches
248 cm |
Weight | 3979 lbs
1804 kg |
Ground clearance | 15.4 inches
39 cm |
Flange rear axle | |
Front tread | 52.8 inches
134 cm |
Rear tread | 52.2/56.3 inches
132/143 cm |
Attachments
Attachment overview | |
|---|---|
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
Kubota BH92 Backhoe | |
|---|---|
Backhoe type | Kubota BH92 Backhoe |
Transport height | 100.1 inches
254 cm |
Bucket width | 12 inches
30 cm |
16 inches
40 cm | |
24 inches
60 cm | |
30 inches
76 cm | |
36 inches
91 cm | |
Digging depth | 109.8 inches
278 cm |
Loading height | 84.3 inches
214 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 4548 lbs
2062 kg |
Dipperstick force | 2698 lbs
1223 kg |
Photos
Kubota L5060 tractor photo
