Kubota M6-111

The Kubota M6-111 is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The listed engine power is Diesel (net): 106.8 hp / 79.6 kW; Diesel (gross): 114.1 hp / 85.1 kW. Transmission: Intelli-Shift Creeper. Operating weight: 9789 lbs 4440 kg.

Overview

	2015 - M6 SeriesUtility tractor
2015 -
M6 Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota M6-111 Engine
Kubota 3.8L 4-cyl diesel
Fuel tank	50.2 gal 190.0 L
Exhaust fluid (DEF)	5.3 gal 20.1 L
Engine details ...

Kubota M6-111 Power
Engine (gross)	114.1 hp 85.1 kW
Engine (net)	106.8 hp 79.6 kW
PTO (claimed)	92 hp 68.6 kW
PTO (tested)	96.48 hp 71.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Grand X Cab standard with air-condiitoning.

Hydraulics
Valves	2 to 4
Pump flow	18.7 gpm 70.8 lpm
Steering flow	16 gpm 60.6 lpm

Tractor hitch
Rear Type	II
Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	6834 lbs 3099 kg
	9447 lbs*Optional. Advertised lift. Actual tested lift was 8613 pounds. 4285 kg
Rear Arms	telescopic lower link ends and stabilizers

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000
Engine RPM	540@2405
	1000@2389

Dimensions & Tires
Wheelbase	95.9 inches 243 cm
Weight	9789 lbs 4440 kg
Front tire	13.6R24
Rear tire	18.4R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	130
Battery volts	12

References
M6-101/M6-111/M6-131/M6-141 published in 2014, by Kubota
M6-101/M6-111/M6-131/M6-141 published in 2021, by Kubota

Engine

Engine Detail — 230 ci / 3.8 L Diesel

Manufacturer	Kubota V3800-TI-CRS
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled
Displacement	230 ci 3.8 L
Bore/Stroke	3.94x4.72 inches 100 x 120 mm
Emissions	Tier IV
Rated Power (net)	106.8 hp 79.6 kW
Rated Power (gross)	114.1 hp 85.1 kW
Fuel system	common rail direct injection
Air cleaner	dual dry element
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
32-speed partial power shift

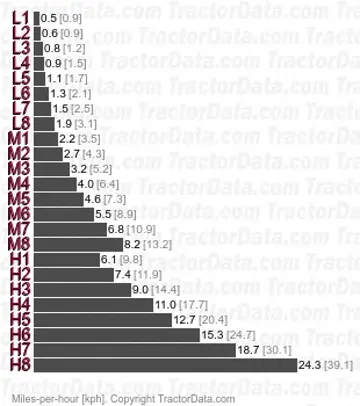

Transmission — Intelli-Shift

Transmission	Intelli-Shift
Type	partial power shift
Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Eight power shift gears in three ranges, with electro-hydraulic shuttle.

Transmission — Intelli-Shift Creeper

Transmission	Intelli-Shift Creeper
Type	partial power shift
Gears	32 forward and reverse
Clutch	electro-hydraulic wet disc

Dimensions

Kubota M6-111 Tires
Standard tires (ag)	Front: 13.6R24. Rear: 18.4R34

Dimensions
Wheelbase	95.9 inches 243 cm
Length	165.4 inches 420 cm
Width	82.7 inches 210 cm
Height (cab)	111.8 inches 283 cm
Weight	9789 lbs 4440 kg
Ground clearance	19.5 inches 49 cm
Front tread	62.2 to 66.1 inches 157 to 167 cm
Rear tread	60.2 to 80.3 inches 152 to 203 cm

Tests

Nebraska Tractor Test 2153
Diesel 24-speed 4WD June 7 - 13, 2016 Link: Nebraska Tractor Test 2153 file
PTO performance
Max power	96.48 hp 71.9 kW
Fuel use	6.1 gal/hour 23.1 l/hour
Power at rated engine speed	93.50 hp 69.7 kW
Fuel use	6.1 gal/hour 23.1 l/hour
Power at rated PTO speed	95.85 hp 71.5 kW
Fuel use	5.9 gal/hour 22.3 l/hour

Photos

Kubota M6-111 tractor photo
