Kubota MZ60
The Kubota MZ60 is a tractor produced by Kubota. It is equipped with a 202 ci 3.3 L engine. The rated power output is 59.2 hp 44.1 kW. Transmission: 24 forward and reverse. Operating weight: 5313 lbs 2409 kg.
Engine Power
59.2 hp
44.1 kW
Fuel & Capacities
17.2 gal
65.1 L
Transmission
24 forward and reverse
Operating Weight
5313 lbs
2409 kg
Kubota MZ60 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2009
SynerZ SeriesUtility tractor |
|---|---|
2006 - 2009 | |
SynerZ Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota MZ60 Engine | |
|---|---|
Kubota 3.3L 4-cyl diesel | |
Fuel tank | 17.2 gal
65.1 L |
Engine details ...  | |
Kubota MZ60 Transmission | |
|---|---|
24-speed | |
Transmission details ...  |
Kubota MZ60 Power | |
|---|---|
Engine | 59.2 hp
44.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Cab standard. |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540 |
Engine RPM | 544@2400 |
764@2400 | |
1080@2400 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 80.7 inches
204 cm |
Weight | 5313 lbs
2409 kg |
Front tire | 8.3-20 |
Rear tire | 12.4-32 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 202 ci / 3.3 L Diesel
Manufacturer | Kubota V3300 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 202 ci
3.3 L |
Bore/Stroke | 3.86x4.33 inches
98 x 110 mm |
Power | 59.2 hp
44.1 kW |
Rated RPM | 2400 |
Starter type | electric |
Transmission

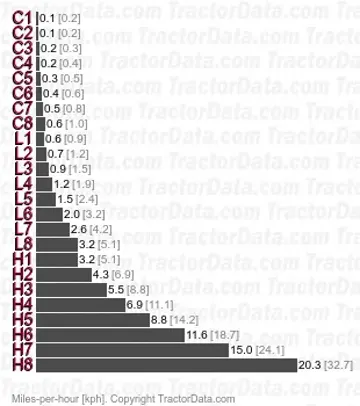

Transmission — 24 forward and reverse
Gears | 24 forward and reverse |
Clutch | electro-hydraulic wet disc |
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift. | |
 | |
Dimensions
Kubota MZ60 Tires | |
|---|---|
Standard tires (ag) | Front: 8.3-20. Rear: 12.4-32 |
Dimensions | |
|---|---|
Wheelbase | 80.7 inches
204 cm |
Length | 142.7 inches
362 cm |
Width | 61.6 inches
156 cm |
Height (cab) | 96.3 inches
244 cm |
Weight | 5313 lbs
2409 kg |
Ground clearance | 16.1 inches
40 cm |
Front tread | 52 inches
132 cm |
Rear tread | 48 to 67.7 inches
121 to 171 cm |
