Kubota M4000

The Kubota M4000 is a tractor produced by Kubota. It is equipped with a 136.1 ci 2.2 L engine. The rated power output is 47.5 hp 35.4 kW. Transmission: 16 forward and 4 reverse. Operating weight: 4125 lbs 1871 kg.

Overview

	1977 - 1981 Utility tractor
1977 - 1981
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota M4000 Engine
Kubota 2.2L 6-cyl diesel
Fuel tank	14.3 gal 54.1 L
Engine details ...

Kubota M4000 Transmission
16-speed synchronized
Transmission details ...

Kubota M4000 Power
Engine	47.5 hp 35.4 kW
PTO (claimed)	40.9 hp 30.5 kW

Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2490 psi 171.7 bar
Valves	1
Pump flow	7.3 gpm 27.6 lpm

Tractor hitch
Rear Type	I
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	78.2 inches 198 cm
Weight	4125 lbs 1871 kg
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
M4000 published by Kubota

Engine

Engine Detail — 136.1 ci / 2.2 L Diesel

Manufacturer	Kubota S2200-A
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	136.1 ci 2.2 L
Bore/Stroke	2.99x3.23 inches 76 x 82 mm
Power	47.5 hp 35.4 kW
Rated RPM	2600
Starter	electric
Starter volts	12

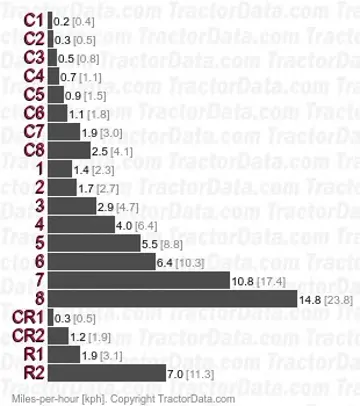

Transmission

Transmission — 16 forward and 4 reverse synchronized

Type	synchronized
Gears	16 forward and 4 reverse

Dimensions

Kubota M4000 Tires
Ag front	6.00-16
Ag rear	13.6-28

Dimensions
Wheelbase	78.2 inches 198 cm
Length	131.3 inches 333 cm
Width	65.4 inches*Minimum width. 166 cm
Height (exhaust)	87 inches 220 cm
Shipping weight	4125 lbs 1871 kg
Ground clearance	16.7 inches 42 cm
Front tread	50.4 to 78 inches 128 to 198 cm
Rear tread	51.2 to 74.8 inches 130 to 189 cm

Photos

Kubota M4000
