Kubota MZ75

The Kubota MZ75 is a tractor produced by Kubota. It is equipped with a 202 ci 3.3 L engine. The rated power output is 74 hp 55.2 kW. Transmission: 24 forward and reverse. Operating weight: 5688 lbs 2580 kg.

Overview

	2006 - 2009 SynerZ SeriesUtility tractor
2006 - 2009
SynerZ Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
MZ75	utility
MZ75-HPC	half-track

Kubota MZ75 Engine
Kubota 3.3L 4-cyl diesel
Fuel tank	27.7 gal 104.8 L
Engine details ...

Kubota MZ75 Transmission
24-speed
Transmission details ...

Kubota MZ75 Power
Engine	74 hp 55.2 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Cab standard.

Tractor hitch
Rear Type	II/I
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540
Engine RPM	589@2600
	828@2600
	1170@2600

Dimensions & Tires
Wheelbase	84.7 inches 215 cm
Weight	5688 lbs 2580 kg
Front tire	9.5-24
Rear tire	16.9-30
Full dimensions and tires ...

Engine

Engine Detail — 202 ci / 3.3 L Diesel

Manufacturer	Kubota V3300-T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	202 ci 3.3 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Power	74 hp 55.2 kW
Rated RPM	2600
Starter type	electric

Transmission

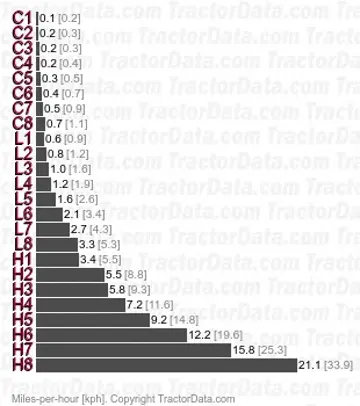

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.

Dimensions

Kubota MZ75 Tires
Standard tires (ag)	Front: 9.5-24. Rear: 16.9-30

Dimensions
Wheelbase	84.7 inches 215 cm
Length	142.7 inches 362 cm
Width	68.1 inches 172 cm
Height (cab)	98.4 inches 249 cm
Weight	5688 lbs 2580 kg
Ground clearance	18.3 inches 46 cm
Front tread	47.2 to 59.1 inches 119 to 150 cm
Rear tread	52 to 67.7 inches 132 to 171 cm
