Kubota MZ755

The Kubota MZ755 is a tractor produced by Kubota. It is equipped with a 220.9 ci 3.6 L engine. The rated power output is 74 hp 55.2 kW. Transmission: 24 forward and reverse. Operating weight: 5688 lbs 2580 kg.

Overview

	2010 - 2014 SynerZ SeriesUtility tractor
2010 - 2014
SynerZ Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
MZ755	utility
MZ755-PC	half-track

Kubota MZ755 Engine
Kubota 3.6L 4-cyl diesel
Fuel tank	27.7 gal 104.8 L
Engine details ...

Kubota MZ755 Transmission
24-speed
Transmission details ...

Kubota MZ755 Power
Engine	74 hp 55.2 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Cab standard.

Tractor hitch
Rear Type	II/I
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540
Engine RPM	544@2400
	764@2400
	1080@2400

Dimensions & Tires
Wheelbase	84.7 inches 215 cm
Weight	5688 lbs 2580 kg
Front tire	9.5-24
Rear tire	16.9-30
Full dimensions and tires ...

Engine

Engine Detail — 220.9 ci / 3.6 L Diesel

Manufacturer	Kubota V3600IDI-T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	220.9 ci 3.6 L
Bore/Stroke	3.86x4.72 inches 98 x 120 mm
Power	74 hp 55.2 kW
Rated RPM	2400
Starter type	electric

Transmission

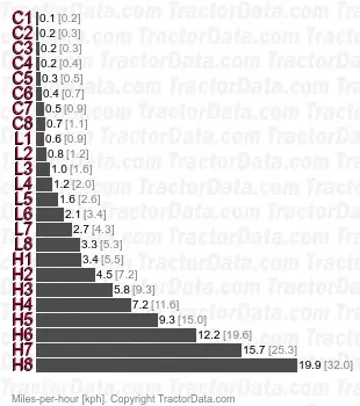

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.

Dimensions

Kubota MZ755 Tires
Standard tires (ag)	Front: 9.5-24. Rear: 16.9-30

Dimensions
Wheelbase	84.7 inches 215 cm
Length	142.7 inches 362 cm
Width	68.1 inches 172 cm
Height (cab)	98.4 inches 249 cm
Weight	5688 lbs 2580 kg
Ground clearance	18.3 inches 46 cm
Front tread	48 to 59.1 inches 121 to 150 cm
Rear tread	52 to 67.7 inches 132 to 171 cm

Photos

Kubota MZ755 tractor photo
