Kubota SMZ85

The Kubota SMZ85 is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The rated power output is 83.8 hp 62.5 kW. Transmission: 24 forward and reverse. Operating weight: 6437 lbs 2919 kg.

Overview

	2006 - 2010 Super SynerZ SeriesUtility tractor
2006 - 2010
Super SynerZ Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Variants
SMZ85	utility
SMZ85-HPC	half-track

Kubota SMZ85 Engine
Kubota 3.8L 4-cyl diesel
Fuel tank	27.7 gal 104.8 L
Engine details ...

Kubota SMZ85 Transmission
24-speed
Transmission details ...

Kubota SMZ85 Power
Engine	83.8 hp 62.5 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Cab standard.

Tractor hitch
Rear Type	II
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)*Three-speed PTO shift with available ground speed or reverse 540
Engine RPM	589@2600
	828@2600
	1170@2600

Dimensions & Tires
Wheelbase	88.6 inches 225 cm
Weight	6437 lbs 2919 kg
Front tire	9.5-24
Rear tire	12.4-38
Full dimensions and tires ...

Engine

Engine Detail — 230 ci / 3.8 L Diesel

Manufacturer	Kubota V3800-T
Configuration	turbocharged diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	230 ci 3.8 L
Bore/Stroke	3.94x4.72 inches 100 x 120 mm
Power	83.8 hp 62.5 kW
Rated RPM	2600
Starter type	electric

Transmission

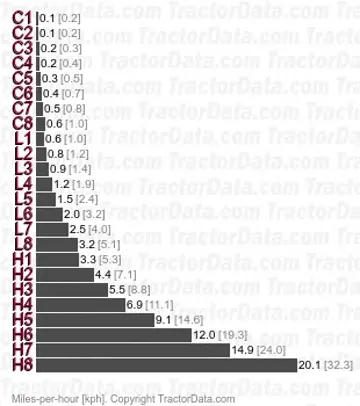

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Clutch	electro-hydraulic wet disc
Eight gears (1-8) in three ranges (creeper, low, and high) with left-hand shuttle shift.

Dimensions

Kubota SMZ85 Tires
Standard tires (ag)	Front: 9.5-24. Rear: 12.4-38

Dimensions
Wheelbase	88.6 inches 225 cm
Length	149.6 inches 379 cm
Width	71.9 inches 182 cm
Height (cab)	100.2 inches 254 cm
Weight	6437 lbs 2919 kg
Ground clearance	17.3 inches 43 cm
Front tread	47.6 to 55.1 inches 120 to 139 cm
Front tread	52.4 to 59.8 inches 133 to 151 cm
Rear tread	47.2 to 74.8 inches 119 to 189 cm
